72971 image
Favorite
72971 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)

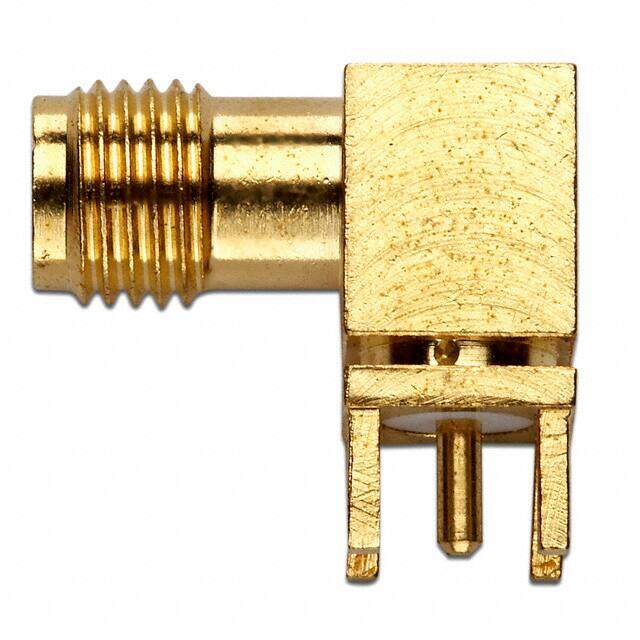

Description CONN SMA RCPT R/A 50 OHM PCB
PDF
/
Buying Options
Total Price: USD $6.72
Unit Price: USD $6.7232
≥1 USD $6.7232
Inventory: 76
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Length 14.8mm

Technical

Contact Termination Solder
Mating Cycles 500
Number of Ports 1
Connector Style SMA
Impedance 50Ohm
Polarity Standard
Frequency 18GHz
Orientation Right Angle
Option GENERAL PURPOSE
Filter Feature NO
IEC Conformance YES
DIN Conformance NO
MIL Conformance YES
Fastening Type Threaded
Voltage - Rated 500V
Connector Type Receptacle, Female Socket
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Published 2008
Packaging Bulk
Operating Temperature -65°C~165°C

Physical

Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Type Through Hole, Right Angle
Mount PCB, Through Hole
Contact Material Brass, Copper

Supply Chain

Factory Lead Time 2 Weeks
