72953
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

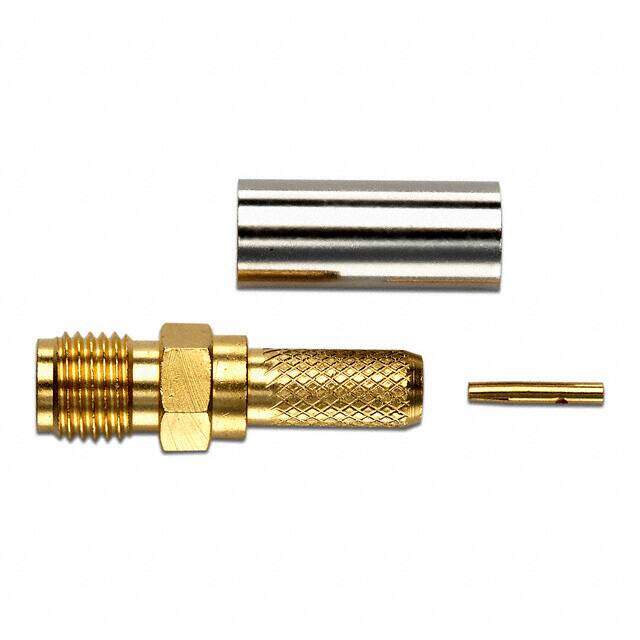

CONN SMA JACK STR 50 OHM CRIMP
PDF
/
Buying Options
Total Price: USD $8.26
Unit Price: USD $8.2632
≥1 USD $8.2632
≥10 USD $8.217088
Inventory: 114
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Brass, Copper
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Beryllium Copper
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2003
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Connector Type Jack, Female Socket
Voltage - Rated 500V
Fastening Type Threaded
Orientation Straight
Frequency 12.4GHz
Polarity Standard
Impedance 50Ohm
Connector Style SMA
Number of Ports 1
Mating Cycles 500
Contact Termination Crimp or Solder
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Cable Group RG-142, 400
Shield Termination Crimp
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
