Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)

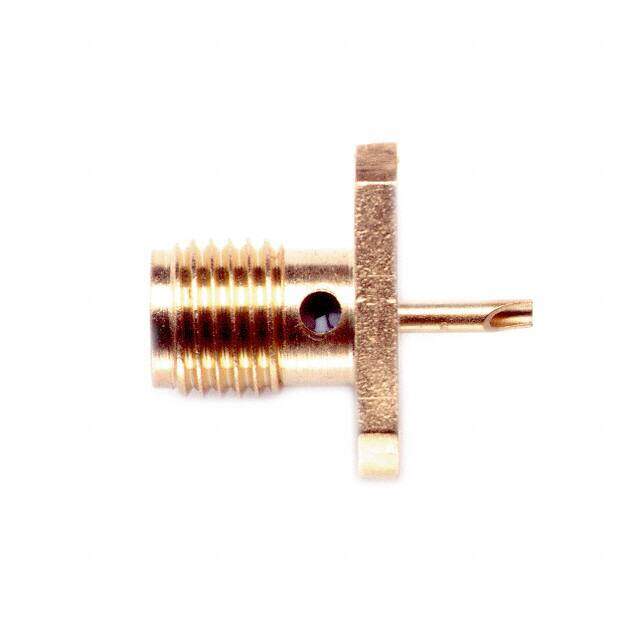

Description CONN SMA RCPT STR 50 OHM SOLDER
PDF
/
Buying Options
Total Price: USD $10.52
Unit Price: USD $10.516
≥1 USD $10.516
Inventory: 114
Minimum: 1
-
+

Technical Details

Physical

Contact Material Copper
Mount Bulkhead, Flanges, Panel
Mounting Type Panel Mount
Mounting Feature Flange
Insulation Material Teflon
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Stainless Steel
Center Contact Plating Gold
Center Contact Material Beryllium Copper

Technical

Operating Temperature -65°C~165°C
Packaging Bulk
JESD-609 Code e4
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Connector Type Receptacle, Female Socket
Voltage - Rated 335V
Fastening Type Threaded
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Option GENERAL PURPOSE
Total Number of Contacts 1
Orientation Vertical
Reach Compliance Code unknown
Frequency 18GHz
Reliability COMMERCIAL
Body Depth 0.375 inch
Polarity Standard
Contact Style COAX
Impedance 50Ohm
Connector Style SMA
Number of Ports 1
Contact Termination Solder Cup
Shield Termination Solder

Dimensions

Height 14.7mm
Length 12.7mm
Width 1.65mm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free
