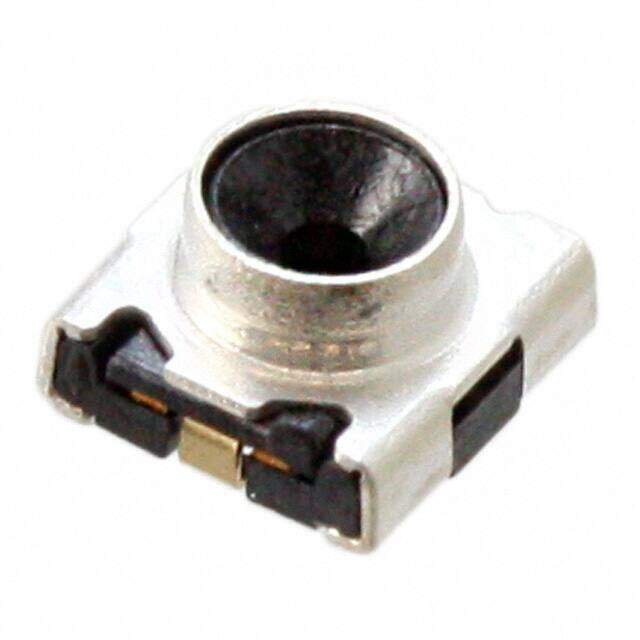

MM8430-2610RB3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN SWD RCPT STR 50 OHM SMD
PDF
/
Buying Options
Total Price: USD $0.08
Unit Price: USD $0.08075
≥1 USD $0.08075
≥10 USD $0.0665
≥100 USD $0.0646
≥500 USD $0.0627
≥1000 USD $0.05985
Inventory: 20380
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material NOT SPECIFIED
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series 8430
Feature Internal Switch
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle, Female Socket
Gender Female
Additional Feature REEL PACKAGING
Fastening Type Snap-On
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Option GENERAL PURPOSE
Total Number of Contacts 1
Orientation Vertical
Reach Compliance Code not_compliant
Reliability COMMERCIAL
Mating Information MULTIPLE MATING PARTS AVAILABLE
Housing Color Silver
Body Depth 0.059 inch
ESR (Equivalent Series Resistance) 50Ohm
Polarity Standard
Contact Style COAX
Contact Resistance 50mOhm
Insulation Resistance 500000000Ohm
Dielectric Withstanding Voltage 450VAC V
Impedance 50Ohm
Connector Style SWD
Number of Ports 1
Durability 500 Cycles
Withdrawl Force-Min 4.8928 N
Frequency (Max) 6GHz
Contact Termination Solder
Operating Frequency-Max 6GHz
Insertion Loss 0.2 dB
VSWR 1.3
Compliance
RoHS Status ROHS3 Compliant
