0734155230
RoHS
RoHS compliant
RoHS compliantPackage 316
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

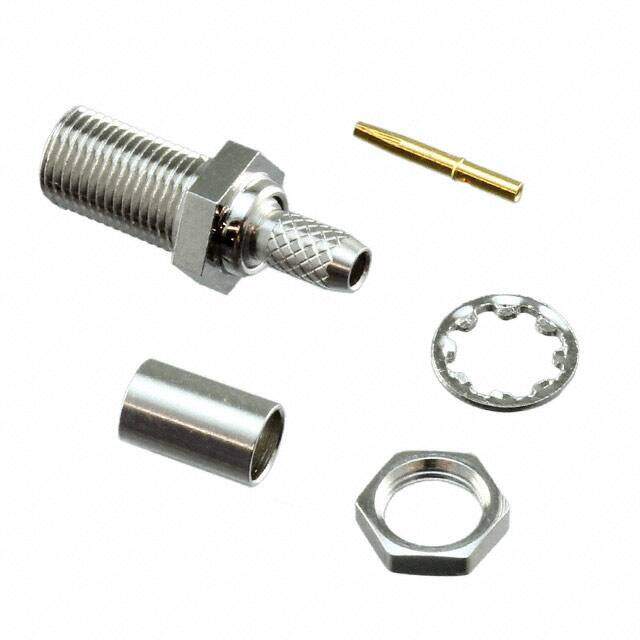

50 OHMS, MCX JACK, STRAIGHT FOR CABLE RG-316
PDF
/
Buying Options
Total Price: USD $1.86
Unit Price: USD $1.8568
≥1 USD $1.8568
≥10 USD $1.6368
≥100 USD $1.309554
Inventory: 1436
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Copper
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount
Package / Case 316
Mounting Feature Bulkhead - Front Side Nut
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Beryllium Copper
Technical
Operating Temperature -55°C~155°C
Packaging Bulk
Series 73415
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Jack, Female Socket
Voltage - Rated 335V
Fastening Type Snap-On
Contact Finish - Mating NOT SPECIFIED
Orientation Straight
Reach Compliance Code unknown
Housing Color Silver
Impedance 50Ohm
Connector Style MCX
Number of Ports 1
Frequency (Max) 6GHz
Mating Cycles 500
Contact Termination Solder
Includes 5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut
Body Finish Nickel
Cable Group RG-174, 188, 316
Shield Termination Crimp
Compliance
RoHS Status ROHS3 Compliant
