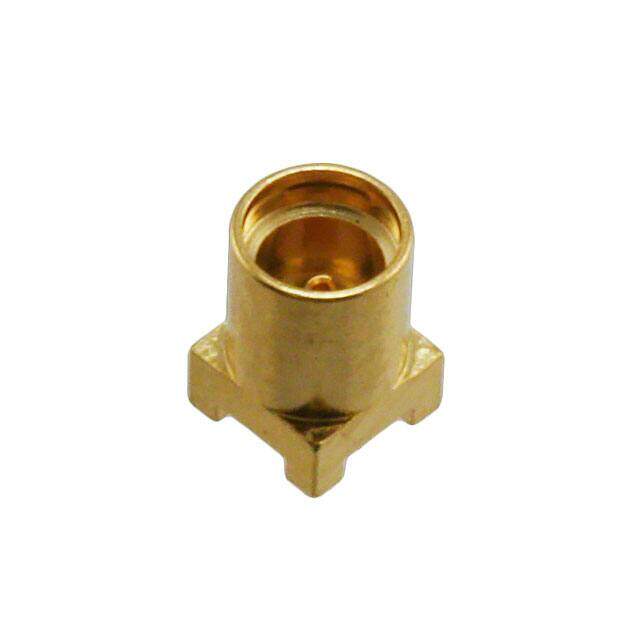

0734152061
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
Conn MMCX 0Hz to 6GHz 50Ohm Solder ST SMD F Gold MMCX Tray
PDF
/
Buying Options
Total Price: USD $2.46
Unit Price: USD $2.464
≥1 USD $2.464
≥10 USD $2.16568
≥100 USD $1.722952
≥500 USD $1.378335
≥1000 USD $1.329108
Inventory: 1977
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mounting Type Surface Mount
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Beryllium Copper
Panel Mount NO
Technical
Operating Temperature -55°C~165°C
Packaging Bulk
Series 73415
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Jack, Female Socket
Voltage - Rated 170V
Fastening Type Snap-On
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Option GENERAL PURPOSE
Impedance 50Ohm
Connector Style MMCX
Number of Ports 1
Frequency (Max) 6GHz
Mating Cycles 500
Contact Termination Solder
Compliance
RoHS Status ROHS3 Compliant
