0734150780
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

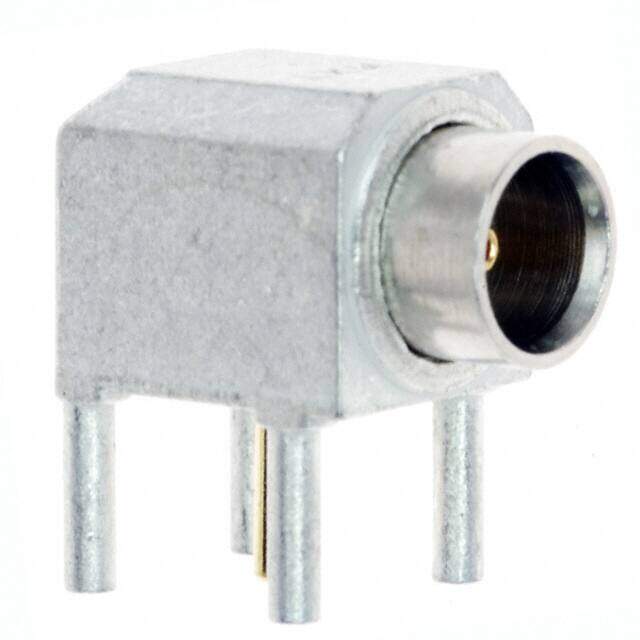

Conn MCX RCP 75Ohm Solder RA Thru-Hole Gold Tray
PDF
/
Buying Options
Total Price: USD $3.71
Unit Price: USD $3.7136
≥1 USD $3.7136
≥10 USD $3.26656
≥100 USD $2.59842
≥500 USD $2.078762
≥1000 USD $2.004517
Inventory: 801
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mounting Type Through Hole, Right Angle
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Beryllium Copper
Panel Mount NO
Technical
Operating Temperature -55°C~155°C
Packaging Tray
Series 73415
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Receptacle, Female Socket
Voltage - Rated 335V
Fastening Type Snap-On
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Option GENERAL PURPOSE
Housing Color Silver
Impedance 75Ohm
Connector Style MCX
Number of Ports 1
Frequency (Max) 6GHz
Mating Cycles 500
Contact Termination Solder
Body Finish Nickel
Compliance
RoHS Status ROHS3 Compliant
