0732512172
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN SMA JACK STR 50 OHM SOLDER
PDF
/
Buying Options
Total Price: USD $8.99
Unit Price: USD $8.9936
≥1 USD $8.9936
≥10 USD $7.82144
≥100 USD $6.452688
≥500 USD $5.357686
Inventory: 5600
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Beryllium Copper
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Series 73251
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Jack, Female Socket
Voltage - Rated 500V
Fastening Type Threaded
Housing Color Gold
Impedance 50Ohm
Connector Style SMA
Number of Ports 1
Frequency (Max) 18GHz
Mating Cycles 500
Contact Termination Solder

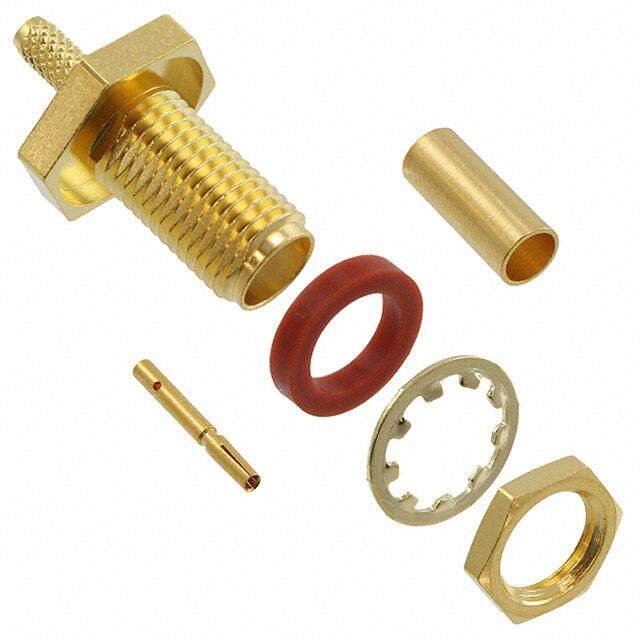

Includes 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
Body Finish Gold
Cable Group RG-316
Shield Termination Crimp
Compliance
RoHS Status ROHS3 Compliant
