CONREVSMA005-G
RoHS
/
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

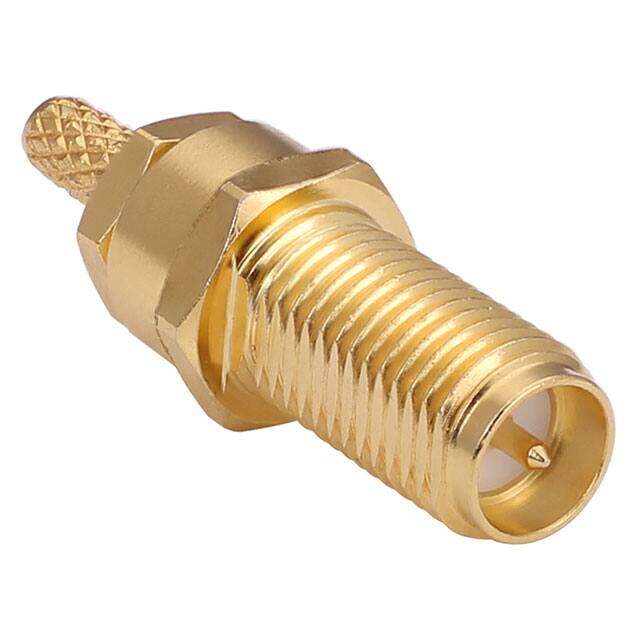

CONN RPSMA RCPT STR 50OHM SOLDER
PDF
/
Buying Options
Total Price: USD $5.18
Unit Price: USD $5.176734
≥1 USD $5.176734
≥10 USD $4.883713
≥100 USD $4.607277
≥500 USD $4.346487
≥1000 USD $4.10046
Inventory: 3196
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Receptacle, Male Pin
Voltage - Rated 335V
Fastening Type Threaded
Impedance 50Ohm
Connector Style RP-SMA
Number of Ports 1
Frequency (Max) 18GHz
Mating Cycles 500
Contact Termination Solder
Includes 10 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Insulator, 1 Lockwasher, 2 Nuts, 1 Sleeve, 1 Spacer
Cable Group RG-174
Shield Termination Crimp
