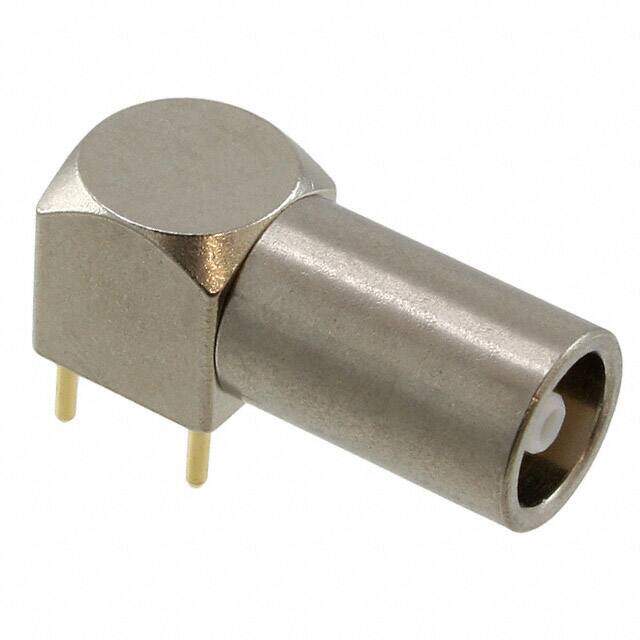

EPL.00.250.NTN image
Favorite
EPL.00.250.NTN image
Favorite

EPL.00.250.NTN

LEMO
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description CONN NIMCAMAC RCPT R/A 50OHM PCB
PDF
/
Buying Options
Total Price: USD $18.78
Unit Price: USD $18.7792
≥1 USD $18.7792
≥10 USD $16.4428
≥100 USD $15.73264
≥500 USD $15.225056
≥1000 USD $14.717648
≥3000 USD $13.905619
Inventory: 1290
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Technical

Body Finish Nickel
Contact Termination Solder
Mating Cycles 5000
Number of Ports 1
Connector Style NIM-CAMAC CD/N 549
Impedance 50Ohm
Coupling Type SNAP
Insulation Resistance 1.012kOhm
Contact Resistance 5.6mOhm
Polarity Standard
Housing Color Silver
Voltage - Rated AC 700V
Current Rating 4A
Reach Compliance Code not_compliant
Ingress Protection IP50 - Dust Protected
Orientation Straight
Option GENERAL PURPOSE
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Voltage - Rated DC 700V
Fastening Type Push-Pull
HTS Code 8544
Additional Feature WTH LATCH
Gender Female
Connector Type Receptacle, Female Socket
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 00
Packaging Bulk
Operating Temperature -55°C~260°C

Physical

Center Contact Material Bronze
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Teflon
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Brass, Bronze

Supply Chain

Factory Lead Time 12 Weeks
