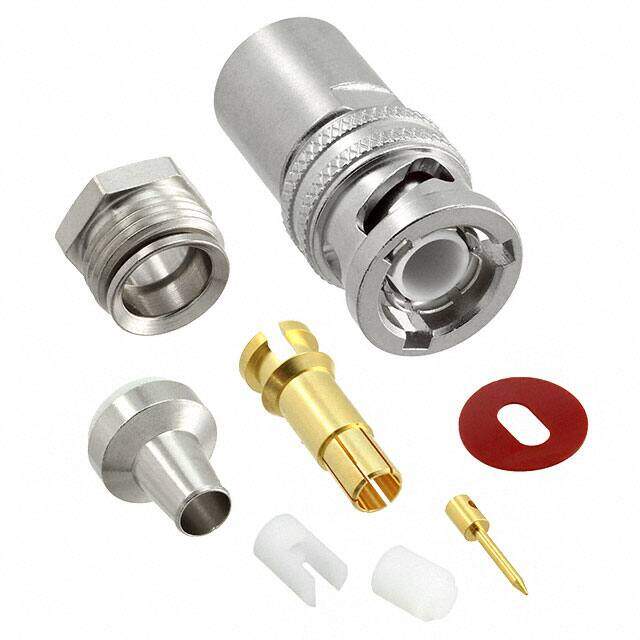

PL75-55 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description CONN TRB PLUG STR SOLDER
PDF
/
Buying Options
Total Price: USD $36.42
Unit Price: USD $36.4232
≥1 USD $36.4232
≥10 USD $33.42328
≥100 USD $32.38664
Inventory: 91
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Contact Material Copper
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Beryllium Copper

Technical

Operating Temperature -65°C~165°C
Packaging Bulk
Published 2010
Series 70
Feature Three Lug
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp, Solder
ECCN Code EAR99
Connector Type Plug, Male Pin (Concentric)
Voltage - Rated 400V
Fastening Type Bayonet Lock
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Orientation Straight
Frequency 500MHz
Housing Color Silver
Impedance Non-Constant
Connector Style TRB, Twinaxial/Triaxial
Number of Ports 1
Mating Cycles 500
Contact Termination Solder
Body Finish Nickel
Cable Group Belden 89272
Shield Termination Wrench Clamp

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
