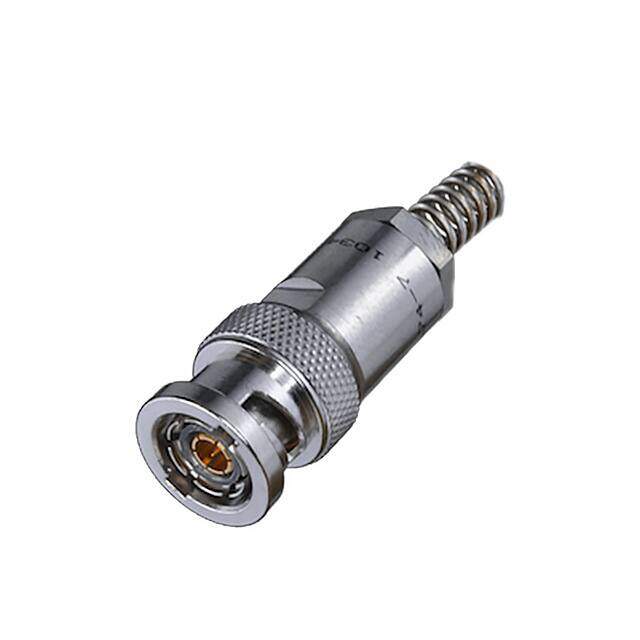

PL74-47BR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN TRB PLUG STR SOLDER
PDF
/
Buying Options
Total Price: USD $35.4
Unit Price: USD $35.4024
≥1 USD $35.4024
≥10 USD $32.49048
≥100 USD $31.48288
Inventory: 149
Minimum: 1
-
+
Technical Details
Technical
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Option GENERAL PURPOSE
Orientation Straight
Frequency 500MHz
Housing Color Silver
Polarity Standard
MIL Conformance NO
Fastening Type Bayonet Lock
Voltage - Rated 400V
Connector Type Plug, Male Pin (Concentric)
ECCN Code EAR99
Termination Crimp, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 70
Published 2014
Packaging Bulk
Operating Temperature -65°C~165°C
Shield Termination Wrench Clamp
Cable Group M17/176-00002
Body Finish Nickel
Includes 2 pcs - 1 Connector, 1 Strain Relief
Contact Termination Solder
Mating Cycles 500
Number of Ports 1
Connector Style TRB, Twinaxial/Triaxial
Impedance Non-Constant
Physical
Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper
Supply Chain
Factory Lead Time 8 Weeks
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
