RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

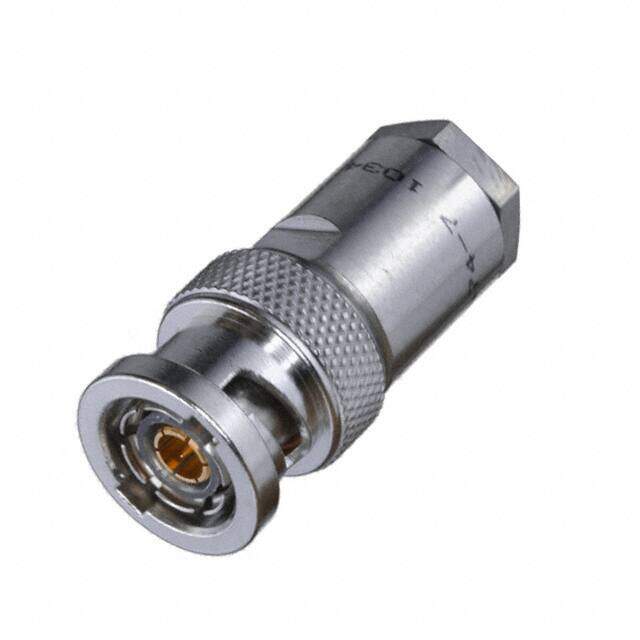

CONN TRB PLUG STR SOLDER
PDF
/
Buying Options
Total Price: USD $26.87
Unit Price: USD $26.8664
≥1 USD $26.8664
≥10 USD $25.564
Inventory: 65
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Shield Termination Wrench Clamp
Cable Group M17/176-00002
Body Finish Nickel
Contact Termination Solder
Mating Cycles 500
Number of Ports 1
Connector Style TRB, Twinaxial/Triaxial
Impedance Non-Constant
Housing Color Silver
Frequency 500MHz
Orientation Straight
Option GENERAL PURPOSE
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Fastening Type Bayonet Lock
Voltage - Rated 400V
Connector Type Plug, Male Pin (Concentric)
ECCN Code EAR99
Termination Crimp, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 70
Published 2014
Packaging Bulk
Operating Temperature -65°C~165°C
Physical
Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Supply Chain
Factory Lead Time 8 Weeks
