RoHS
/
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN TRT JACK STR PCB
PDF
/
Buying Options
Total Price: USD $48.7
Unit Price: USD $48.6992
≥1 USD $48.6992
Inventory: 281
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Technical
Body Finish Nickel

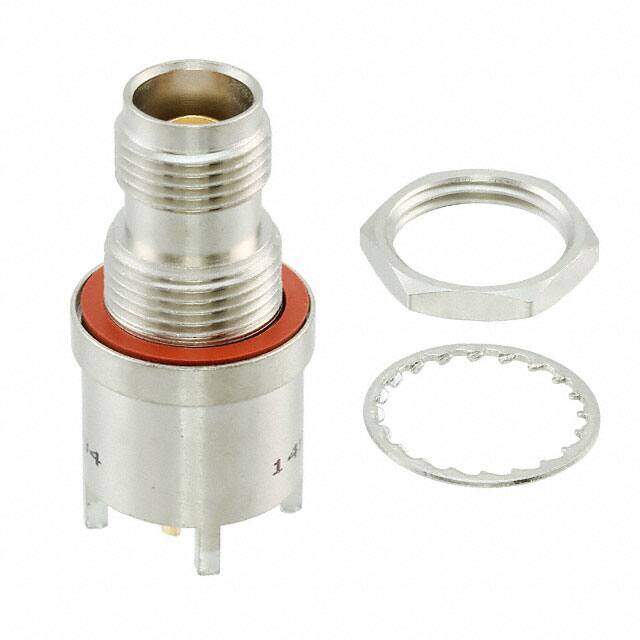

Includes 3 pcs - 1 Connector, 1 Nut, 1 Washer
Contact Termination Solder
Mating Cycles 500
Number of Ports 1
Connector Style TRT, Twinaxial/Triaxial
Impedance Non-Constant
Coupling Type BAYONET
Housing Color Silver
Frequency 500MHz
Orientation Straight
Option GENERAL PURPOSE
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Fastening Type Threaded
Voltage - Rated 400V
Gender Female
Connector Type Jack, Female Socket (Concentric)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 370
Published 2012
Packaging Bulk
Operating Temperature -65°C~165°C
Physical
Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Insulation Material POLYTETRAFLUORO ETHYLENE
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount, Through Hole
Mount Bulkhead, Panel, Through Hole
Contact Material Copper
Supply Chain
Factory Lead Time 8 Weeks
