RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

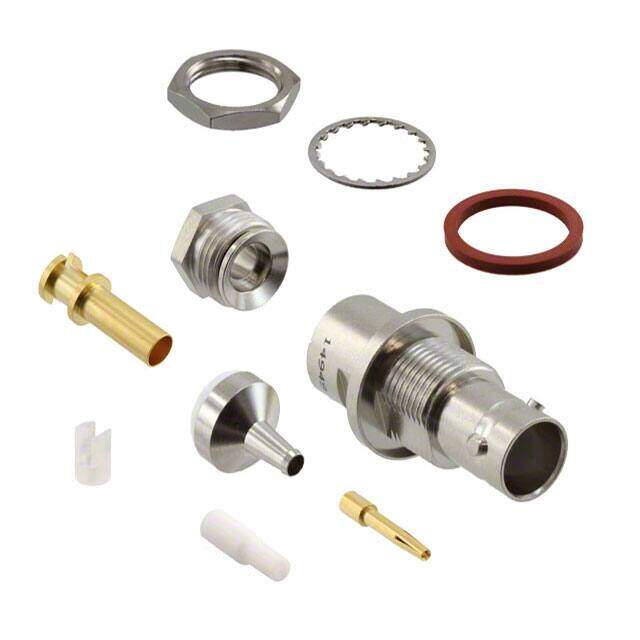

CONN TRB JACK STR SOLDER
PDF
/
Buying Options
Total Price: USD $34.81
Unit Price: USD $34.8128
≥1 USD $34.8128
≥10 USD $31.94752
≥100 USD $30.95664
Inventory: 104
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Technical
Shield Termination Wrench Clamp
Cable Group M17/176-00002
Body Finish Nickel
Includes 3 pcs - 1 Connector, 1 Nut, 1 Washer
Contact Termination Solder
Mating Cycles 500
Number of Ports 1
Connector Style TRB, Twinaxial/Triaxial
Impedance Non-Constant
Body/Shell Style RECEPTACLE
Body Depth 0.8 inch
Housing Color Silver
Mating Information NO
Frequency 500MHz
Orientation Straight
Option GENERAL PURPOSE
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Fastening Type Bayonet Lock
Additional Feature POLARIZED
Voltage - Rated 400V
Gender Female
Connector Type Jack, Female Socket (Concentric)
ECCN Code EAR99
Termination Crimp, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Three Lug
Series 70
Published 2010
Packaging Bulk
Operating Temperature -65°C~165°C
Physical
Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Insulation Material POLYTETRAFLUORO ETHYLENE
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount
Mount Bulkhead, Front Side Nut, Panel
Contact Material Copper
Supply Chain
Factory Lead Time 8 Weeks
