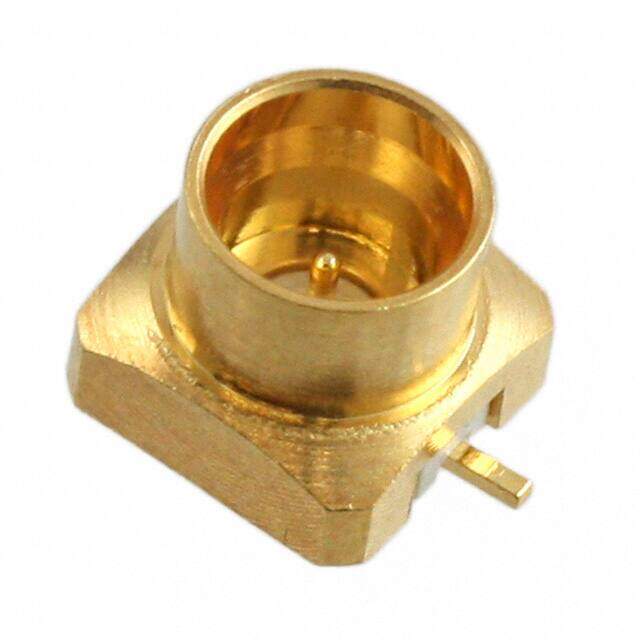

SMP-MSLD-PCS
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN SMP RCPT STR 50 OHM SMD
PDF
/
Buying Options
Total Price: USD $11.72
Unit Price: USD $11.7216
≥1 USD $11.7216
≥10 USD $10.3928
≥100 USD $9.992928
≥500 USD $9.593232
≥1000 USD $9.060216
≥3000 USD $8.260798
Inventory: 2572
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass, Gold
Mount PCB, Surface Mount
Mounting Type Surface Mount
Insulation Material POLYTETRAFLUORO ETHYLENE
Dielectric Material Liquid Crystal Polymer (LCP)
Body Material Brass
Center Contact Plating Gold
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2005
JESD-609 Code e4
Feature Limited Detent
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Receptacle, Male Pin
Additional Feature VSWR IS MAX AT 20GHZ
Fastening Type Snap-On
Subcategory Other RF Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Option GENERAL PURPOSE
Total Number of Contacts 1
Orientation Straight
Frequency 18GHz
Reliability COMMERCIAL
Polarity Standard
Contact Style COAX
Body/Shell Style PLUG
Impedance 50Ohm
Connector Style SMP
Number of Ports 1
Insertion Force-Max 8.896 N
Mating Cycles 500
Contact Termination Solder
VSWR 1.5
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
