FA1-NBSJ-C04-6
RoHS
RoHS compliant
RoHS compliantPackage SMB
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
RF Connectors / Coaxial Connectors RG58 141 FEMALE ST FAKRA SMB
PDF
/
Buying Options
Total Price: USD $2.41
Unit Price: USD $2.406713
≥1 USD $2.406713
≥10 USD $2.270487
≥100 USD $2.141965
≥500 USD $2.020728
≥1000 USD $1.906342
Inventory: 3608
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper
Contact Plating Gold
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case SMB
Insulation Material Teflon
Dielectric Material Polytetrafluoroethylene (PTFE)
Housing Material Polyester
Body Material Brass
Center Contact Plating Gold
Center Contact Material Beryllium Copper
Technical
Operating Temperature -40°C~100°C
Packaging Bulk
Published 2001
Feature Code B
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Jack, Female Socket
Max Operating Temperature 100°C
Min Operating Temperature -40°C
Fastening Type Latch Lock
Orientation Straight
Frequency 6GHz
Housing Color Cream
Polarity Standard
Plating Brass
Impedance 50Ohm
Connector Style SMB, Fakra
Number of Ports 1
Body Plating Nickel
Frequency (Max) 6GHz
Mating Cycles 100
Contact Termination Crimp

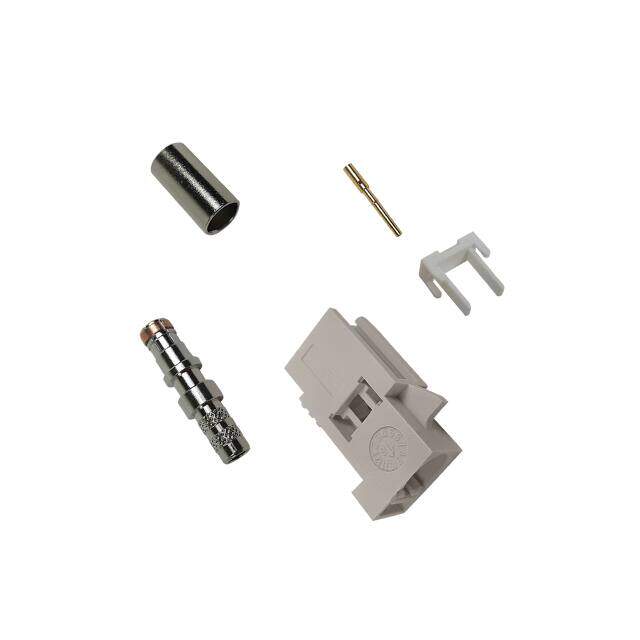

Includes 5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Housing, 1 Locking Clip
Insertion Loss 0.3dB
Body Finish Nickel
Cable Group RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Shield Termination Crimp
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
