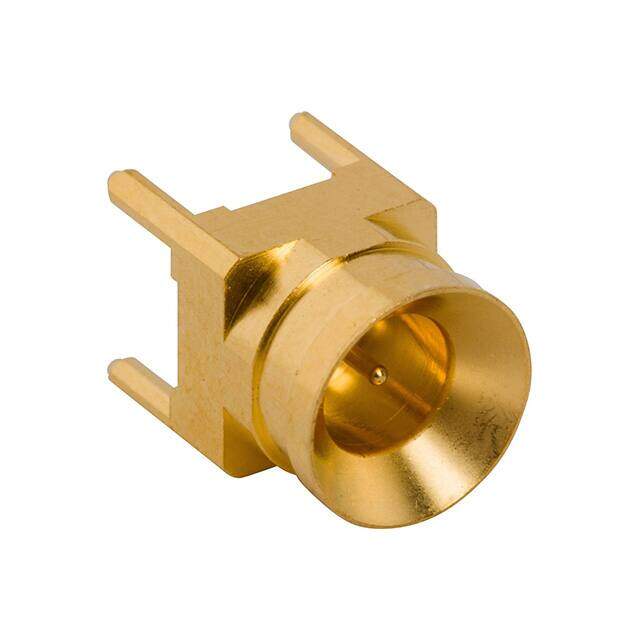

920-503J-53P
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN HD-EFI JACK 50 OHM PCB
PDF
/
Buying Options
Total Price: USD $4.79
Unit Price: USD $4.7872
≥1 USD $4.7872
≥10 USD $4.34896
≥100 USD $4.119104
≥500 USD $4.02336
≥1000 USD $3.831696
≥3000 USD $3.35273
Inventory: 1186
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Shield Termination Solder
Body Finish Nickel
Insertion Loss 0.1dB
Contact Termination Solder
Mating Cycles 200
Frequency (Max) 6GHz
Number of Ports 1
Connector Style EFI, HD
Impedance 50Ohm
Housing Color Gold
Fastening Type Push-Pull
Connector Type Plug, Male Pin
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Smooth Bore
Series HD-EFI
Packaging Tray
Operating Temperature -45°C~125°C
Physical
Center Contact Material Brass
Center Contact Plating Gold
Body Material Brass
Dielectric Material Liquid Crystal Polymer (LCP)
Mounting Type Through Hole
Supply Chain
Factory Lead Time 11 Weeks
