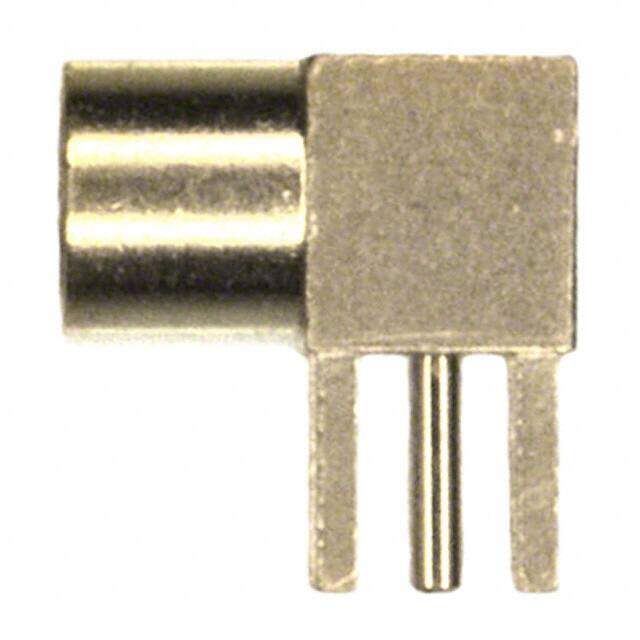

908-24100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN MMCX JACK R/A 50 OHM PCB
PDF
/
Buying Options
Total Price: USD $17.45
Unit Price: USD $17.4504
≥1 USD $17.4504
≥10 USD $15.27768
≥100 USD $14.617504
≥500 USD $14.145824
≥1000 USD $13.674408
≥3000 USD $12.919922
Inventory: 139
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper
Mount PCB, Through Hole
Mounting Type Through Hole, Right Angle
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Beryllium Copper
Technical
Packaging Bulk
Published 2003
Series MicroMate?
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Jack, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Gender Female
Fastening Type Snap-On
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Option GENERAL PURPOSE
Total Number of Contacts 1
Orientation Right Angle
Depth 3.5mm
Frequency 6GHz
Reliability COMMERCIAL
Mating Information MULTIPLE MATING PARTS AVAILABLE
Polarity Standard
Contact Style COAX
Insulation Resistance 500MOhm
Dielectric Withstanding Voltage 700VAC V
Impedance 50Ohm
Connector Style MMCX
Number of Ports 1
Withdrawl Force-Min 6.2272 N
Mating Cycles 500
Contact Termination Solder
VSWR 1.4
Dimensions
Length 6.5mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
