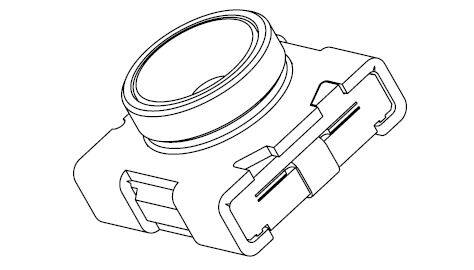

902-9040
RoHS
RoHS compliant
RoHS compliantPackage SMA
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
SWITCHES WITH GOLD BODY PLATING
PDF
/
Buying Options
Total Price: USD $2.61
Unit Price: USD $2.6136
≥1 USD $2.6136
≥10 USD $2.376
≥100 USD $2.249984
≥500 USD $2.197712
≥1000 USD $2.092992
≥3000 USD $1.831421
Inventory: 9751
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Shield Termination Solder
Body Finish Gold
Insertion Loss 0.2dB
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 6GHz
Body Plating Gold
Number of Ports 1
Connector Style Coaxial Switch - 4.30mm Plug Dia
Impedance 50Ohm
Polarity Standard
Housing Color Gold
Frequency 6GHz
Orientation Straight
Fastening Type Snap-On
Gender Male
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Connector Type Jack, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Internal Switch
Published 2014
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Dielectric Material Liquid Crystal Polymer (LCP)
Package / Case SMA
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
Contact Material Bronze, Copper
Supply Chain
Factory Lead Time 9 Weeks
