901-9873
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

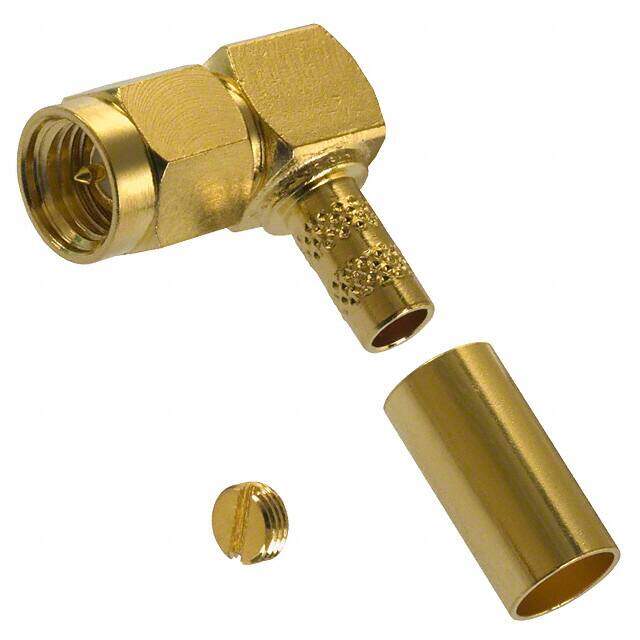

CONN SMA PLUG R/A 50 OHM SOLDER
PDF
/
Buying Options
Total Price: USD $17.72
Unit Price: USD $17.7232
≥1 USD $17.7232
≥10 USD $15.36304
≥100 USD $14.560832
≥500 USD $14.349808
≥1000 USD $12.661528
≥3000 USD $11.817458
Inventory: 60
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Length 17.1mm
Technical
Shield Termination Crimp
Cable Group RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Insertion Loss 0.25 dB
Includes 5 pcs - 1 Connector, 1 Contact, 1 End Cap, 1 Ferrule, 1 Heat Shrink
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 12.4GHz
Number of Ports 1
Connector Style SMA
Impedance 50Ohm
Insulation Resistance 5GOhm
Polarity Standard
Frequency 18Hz
Orientation Right Angle
Option GENERAL PURPOSE
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Fastening Type Threaded
Additional Feature APPLICABLE CABLE: RG-58/U
Voltage - Rated 500V
Gender Male
Connector Type Plug, Male Pin
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Published 2001
Packaging Bulk
Operating Temperature -65°C~165°C
Physical
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Tetrafluoroethylene
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging
Supply Chain
Factory Lead Time 9 Weeks
