901-9531-2

Amphenol RF
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description RF Connectors / Coaxial Connectors SMA RA PLG STD CABLE CRIMP
PDF
/
Buying Options
Total Price: USD $39.47
Unit Price: USD $39.468
≥1 USD $39.468
≥10 USD $34.56112
≥100 USD $33.067584
≥500 USD $32.000672
≥1000 USD $30.934024
≥3000 USD $29.227334
Inventory: 129
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Length 17.3mm

Technical

Shield Termination Crimp
Cable Group RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907

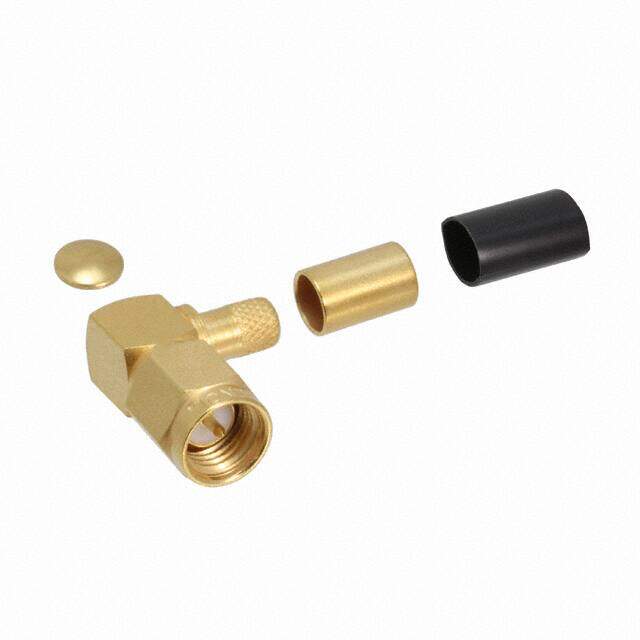

Includes 4 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Heat Shrink
Contact Termination Solder
Mating Cycles 500
Number of Ports 1
Connector Style SMA
Impedance 50Ohm
Insulation Resistance 5GOhm
Polarity Standard
Frequency 18GHz
Ingress Protection Weatherproof
Orientation Right Angle
Option GENERAL PURPOSE
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Fastening Type Threaded
Voltage - Rated 500V
Gender Male
Connector Type Plug, Male Pin
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Published 2001
Packaging Bulk
Operating Temperature -65°C~165°C

Physical

Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Stainless Steel
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Tetrafluoroethylene
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging
Contact Material Copper

Supply Chain

Factory Lead Time 10 Weeks
