901-10015

Amphenol RF
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description RF Connectors / Coaxial Connectors BULKHEAD JACK LMR 240
PDF
/
Buying Options
Total Price: USD $18.82
Unit Price: USD $18.8232
≥1 USD $18.8232
≥10 USD $15.770304
≥100 USD $14.753024
Inventory: 77
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Contact Material Copper
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Insulation Material TFE
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Stainless Steel
Center Contact Plating Gold
Center Contact Material Beryllium Copper

Technical

Operating Temperature -65°C~165°C
Packaging Bulk
Published 2000
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Jack, Female Socket
Additional Feature CAPTIVE CONTACT
Fastening Type Threaded
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Option GENERAL PURPOSE
Total Number of Contacts 1
Orientation Straight
Frequency 18GHz
Reliability COMMERCIAL
Housing Color Silver
Polarity Standard
Contact Style COAX
Cable Type LMR240
Impedance 50Ohm
Connector Style SMA
Number of Ports 1
Frequency (Max) 12.4GHz
Mating Cycles 500
Contact Termination Solder

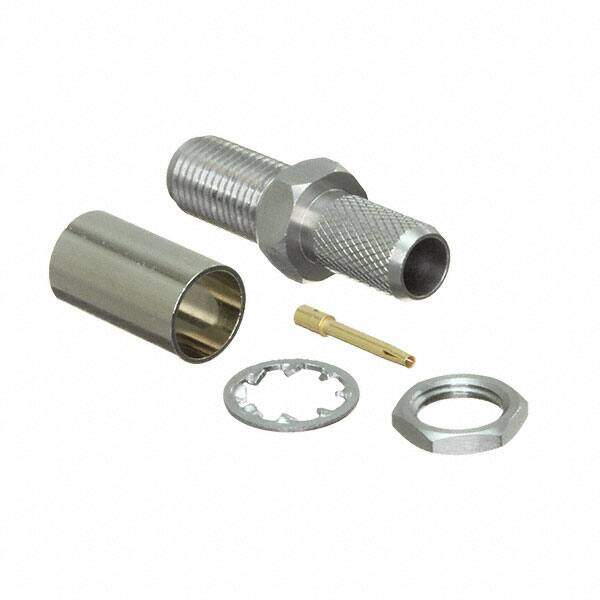

Includes 5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut
Cable Group Belden 9258, LMR-240
Shield Termination Crimp

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
