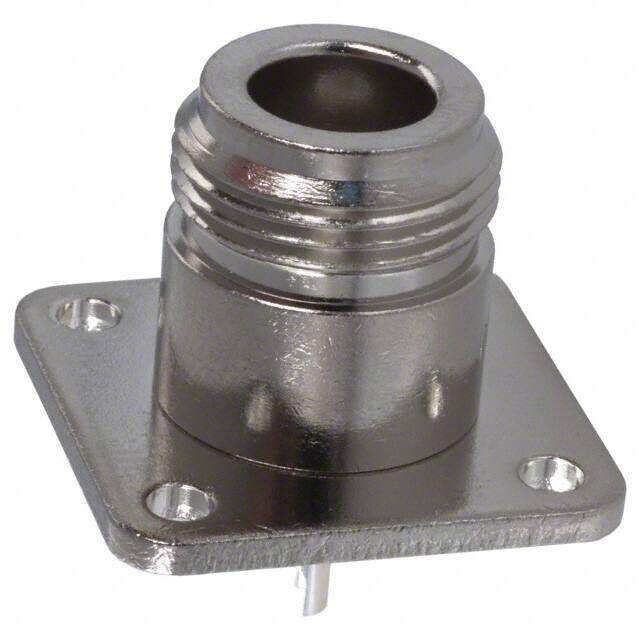

82-97 image
Favorite
82-97 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description Coaxial Connector
PDF
/
Buying Options
Total Price: USD $16.39
Unit Price: USD $16.388733
≥1 USD $16.388733
≥10 USD $15.461072
≥100 USD $14.585919
≥500 USD $13.760302
≥1000 USD $12.981411
Inventory: 942
Minimum: 1
-
+

Technical Details

Technical

Insertion Loss 0.15dB
Body Finish Nickel
Shield Termination Solder
Contact Termination Solder Cup
Mating Cycles 500
Frequency (Max) 11GHz
Body Plating Nickel
Number of Ports 1
Connector Style N Type
Impedance 50Ohm
Plating Nickel
Polarity Standard
Housing Color Silver
Frequency 11GHz
Orientation Straight
Fastening Type Threaded
Voltage - Rated 1500V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Extended Insulation
Published 2001
Packaging Bulk
Operating Temperature -65°C~165°C

Dimensions

Height 31.75mm
Length 101.6mm
Width 88.9mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free

Physical

Center Contact Material Beryllium Copper
Center Contact Plating Silver
Body Material Brass
Weight 21.772009g
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Feature Flange
Mounting Type Panel Mount
Mount Flanges, Panel
Contact Plating Silver
Contact Material Copper

Supply Chain

Factory Lead Time 10 Weeks
