82-63 image
Favorite
82-63 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)

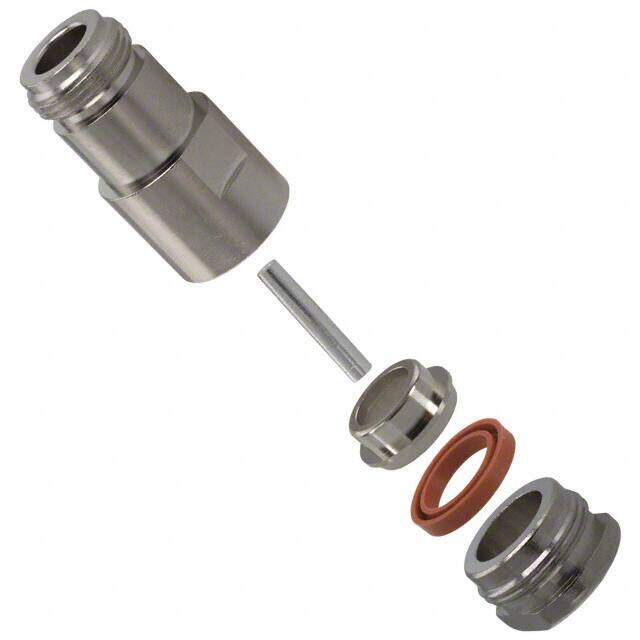

Description CONN N JACK STR 50 OHM SOLDER
PDF
/
Buying Options
Total Price: USD $22.57
Unit Price: USD $22.572
≥1 USD $22.572
≥10 USD $19.76568
≥100 USD $18.911552
≥500 USD $18.301536
≥1000 USD $17.69152
≥3000 USD $16.715389
Inventory: 174
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Contact Material Copper
Contact Plating Silver
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 51.255995g
Body Material Brass
Center Contact Plating Silver
Center Contact Material Beryllium Copper

Technical

Operating Temperature -65°C~165°C
Packaging Bulk
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 1500V
Fastening Type Threaded
Orientation Straight
Ingress Protection Weatherproof
Frequency 11Hz
Housing Color Silver
Impedance 50Ohm
Connector Style N Type
Number of Ports 1
Body Plating Nickel
Frequency (Max) 11GHz
Mating Cycles 500
Contact Termination Solder
Includes 5 pcs - 1 Connector, 1 Braid Clamp, 1 Clamp, 1 Contact, 1 Gasket
Insertion Loss 0.15dB
Body Finish Nickel
Cable Group RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, 393
Shield Termination Clamp

Dimensions

Height 25.4mm
Length 101.6mm
Width 76.2mm

Compliance

REACH SVHC Unknown
RoHS Status RoHS Compliant
