82-202-1006
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN N PLUG STR 50 OHM SOLDER
PDF
/
Buying Options
Total Price: USD $15.75
Unit Price: USD $15.752
≥1 USD $15.752
≥10 USD $13.64968
≥100 USD $12.937408
≥500 USD $12.749968
≥1000 USD $11.24992
≥3000 USD $10.499949
Inventory: 306
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material NOT SPECIFIED
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material TFE
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2003
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug, Male Pin
Gender Male
Voltage - Rated 1500V
Fastening Type Threaded
Subcategory RF N Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Option GENERAL PURPOSE
Total Number of Contacts 1
Orientation Straight
Ingress Protection Weatherproof
Frequency 11Hz
Reliability COMMERCIAL
Housing Color Silver
Polarity Standard
Contact Style COAX
Impedance 50 Ω
Connector Style N Type
Number of Ports 1
Frequency (Max) 11GHz
Mating Cycles 500
Contact Termination Solder
Insulator Color NATURAL

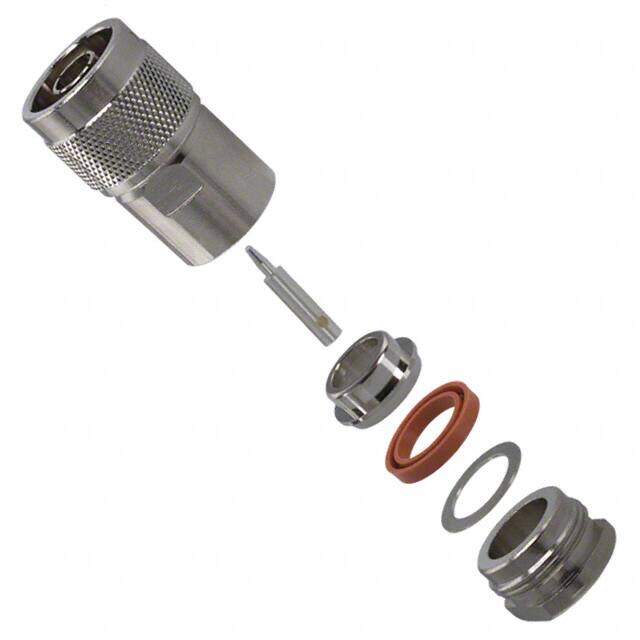

Includes 6 pcs - 1 Connector, 1 Braid Clamp, 1 Clamp, 1Contact, 1 Gasket, 1 Washer
Insertion Loss 0.15dB
Body Finish Nickel
Cable Group RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, 393, Belden 9913
VSWR 1.3
Shield Termination Clamp
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
