79875-RFX
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN TNC PLUG STR 50 OHM SOLDER
PDF
/
Buying Options
Total Price: USD $5.77
Unit Price: USD $5.7728
≥1 USD $5.7728
≥10 USD $5.24304
≥100 USD $4.966016
≥500 USD $4.85056
≥1000 USD $4.61956
≥3000 USD $4.042122
Inventory: 600
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material TFE
Dielectric Material Polyoxymethylene (POM) Acetal
Body Material Brass
Center Contact Plating Gold
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2003
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pin
Gender Male
Voltage - Rated 500V
Fastening Type Threaded
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Option GENERAL PURPOSE
Orientation Straight
Ingress Protection Weatherproof
Frequency 11GHz
Mating Information MULTIPLE MATING PARTS AVAILABLE
Housing Color Silver
Insulation Resistance 5GOhm
Impedance 50Ohm
Connector Style TNC
Number of Ports 1
Frequency (Max) 6GHz
Mating Cycles 500
Contact Termination Crimp

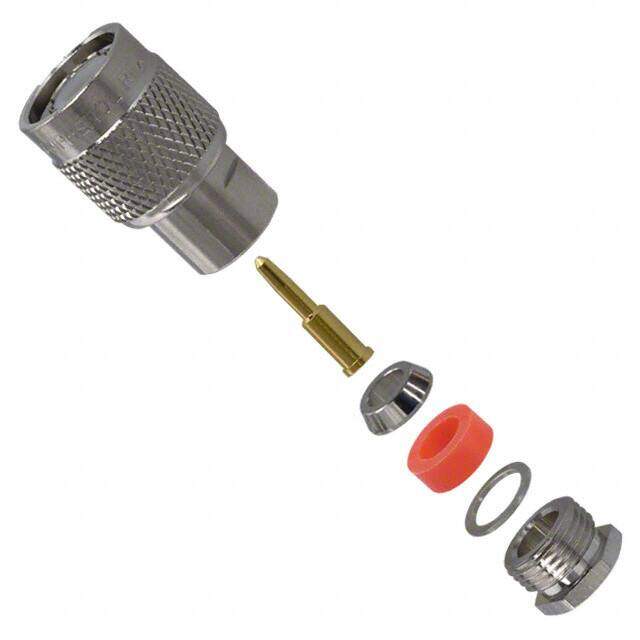

Includes 6 pcs - 1 Connector, 1 Clamp, 1 Contact, 1 Gasket, 1 Top Hat, 1 Washer
Insertion Loss 0.18dB
Body Finish Nickel
Cable Group RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
VSWR 1.3
Shield Termination Clamp
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
