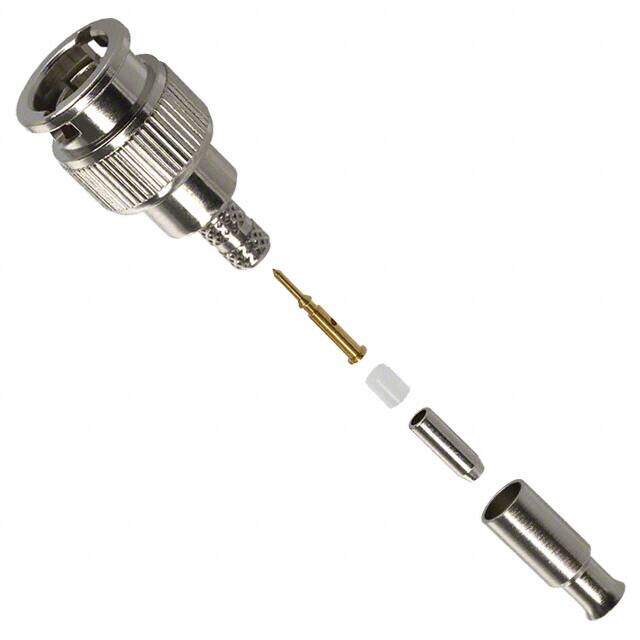

31-70261 image
Favorite
31-70261 image
Favorite

31-70261

Amphenol RF
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description CONN MINI BNC PLUG 75 OHM SOLDER
PDF
/
Buying Options
Total Price: USD $10.45
Unit Price: USD $10.4456
≥1 USD $10.4456
≥10 USD $9.40368
≥100 USD $8.858432
≥500 USD $8.631216
≥1000 USD $8.404088
≥3000 USD $7.495514
Inventory: 436
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Technical

Shield Termination Crimp
Cable Group RG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179
Body Finish Nickel
Insertion Loss 0.1dB
Includes 5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Insulator, 1 Spacer
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 4GHz
Number of Ports 1
Connector Style BNC, Mini
Impedance 75Ohm
Polarity Standard
Housing Color Silver
Reach Compliance Code unknown
Orientation Straight
Option GENERAL PURPOSE
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Fastening Type Bayonet Lock
Voltage - Rated 500V
Gender Male
Connector Type Plug, Male Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Published 2002
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging

Supply Chain

Factory Lead Time 10 Weeks
