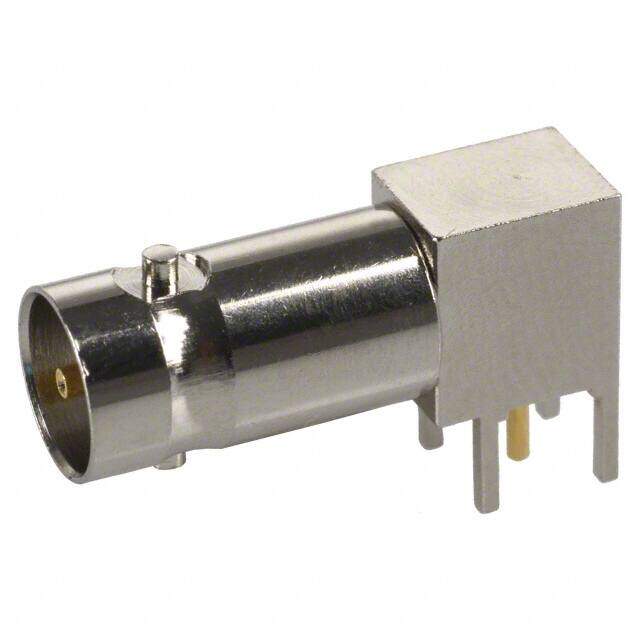

31-70255
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN MINI BNC JACK R/A 75OHM PCB
PDF
/
Buying Options
Total Price: USD $10.04
Unit Price: USD $10.0408
≥1 USD $10.0408
≥10 USD $9.03672
≥100 USD $8.512768
≥500 USD $8.294528
≥1000 USD $8.0762
≥3000 USD $7.20309
Inventory: 145
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Body Finish Nickel
Insertion Loss 0.1dB
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 4GHz
Number of Ports 1
Connector Style BNC, Mini
Impedance 75Ohm
Polarity Standard
Housing Color Silver
Reach Compliance Code unknown
Orientation Right Angle
Option GENERAL PURPOSE
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Fastening Type Bayonet Lock
Voltage - Rated 500V
Gender Female
Connector Type Jack, Female Socket
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Published 2001
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper
Supply Chain
Factory Lead Time 10 Weeks
