31-342
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN BNC JACK STR 50 OHM CRIMP
PDF
/
Inventory: 8894
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Phosphor Bronze
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2001
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Jack, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 500V
Fastening Type Bayonet Lock
Orientation Straight
Frequency 4GHz
Housing Color Silver
Polarity Standard
Impedance 50Ohm
Connector Style BNC
Number of Ports 1
Body Plating Nickel
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Crimp

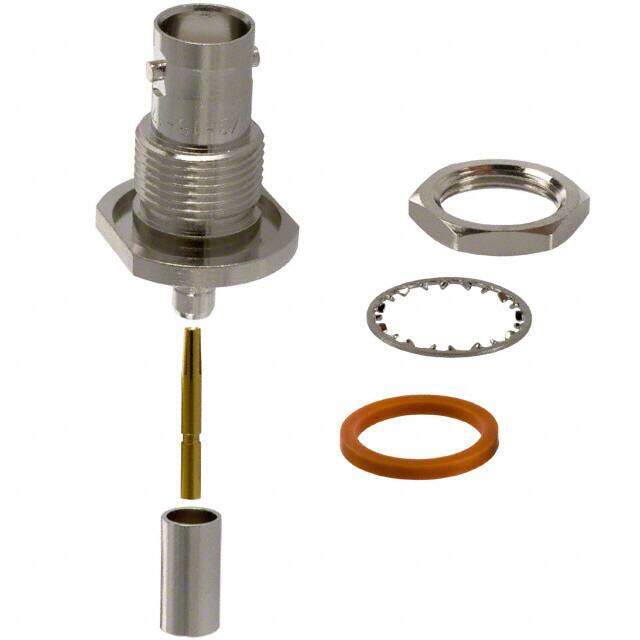

Includes 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
Insertion Loss 0.2dB
Body Finish Nickel
Cable Group RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Shield Termination Crimp
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
