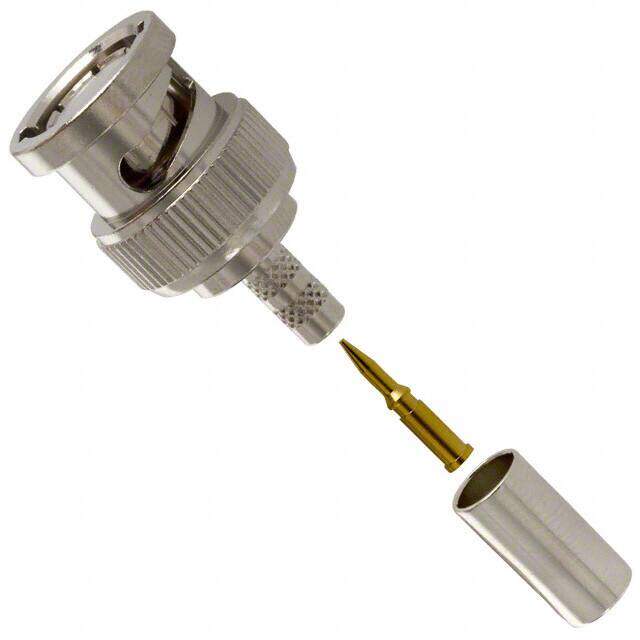

31-320-RFX

Amphenol RF
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description CONN BNC PLUG STR 50 OHM CRIMP
PDF
/
Buying Options
Total Price: USD $2.63
Unit Price: USD $2.6312
≥1 USD $2.6312
≥10 USD $2.39008
≥100 USD $2.26336
≥500 USD $2.210912
≥1000 USD $2.105576
≥3000 USD $1.842368
Inventory: 7828
Minimum: 1
-
+

Technical Details

Technical

Reliability COMMERCIAL
Mating Information MULTIPLE MATING PARTS AVAILABLE
Housing Color Silver
Frequency 4GHz
Orientation Straight
Total Number of Contacts 1
Option GENERAL PURPOSE
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Fastening Type Bayonet Lock
Voltage - Rated 500V
Gender Female
Connector Type Plug, Male Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2001
Packaging Bulk
Operating Temperature -40°C~85°C
Shield Termination Crimp
VSWR 1.3
Cable Group RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Body Finish Nickel
Insertion Loss 0.2dB
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Insulator Color NATURAL
Contact Termination Crimp or Solder
Mating Cycles 500
Number of Ports 1
Connector Style BNC
Impedance 50 Ω
Insulation Resistance 5GOhm
Contact Style COAX
Polarity Standard

Physical

Center Contact Plating Gold
Body Material Brass
Weight 85.048569g
Dielectric Material Polyoxymethylene (POM) Acetal
Insulation Material POLYTETRAFLUORO ETHYLENE
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material NOT SPECIFIED

Supply Chain

Factory Lead Time 10 Weeks

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown

Dimensions

Width 63.5mm
Length 29.8mm
Height 9.525mm
Diameter 14.5 mm
