31-12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
Coaxial Connector
PDF
/
Buying Options
Total Price: USD $13.94
Unit Price: USD $13.9392
≥1 USD $13.9392
≥10 USD $12.35784
≥100 USD $11.882112
≥500 USD $11.406912
≥1000 USD $10.773136
≥3000 USD $9.82256
Inventory: 76
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Free Hanging (In-Line)
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Silver
Center Contact Material Brass
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug, Male Pin
Voltage - Rated 500V
Fastening Type Bayonet Lock
Housing Color Silver
Impedance 50Ohm
Connector Style BNC
Number of Ports 1
Frequency (Max) 4GHz
Mating Cycles 500
Contact Termination Solder

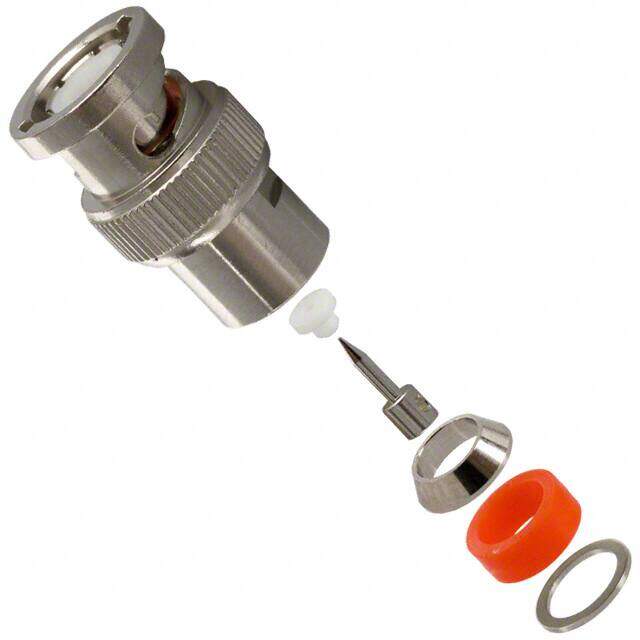

Includes 7 pcs - 1 Connector, 1 Braid Clamp, 1 Clamp, 1 Contact, 1 Gasket, 1 Insulator, 1 Washer
Insertion Loss 0.2dB
Body Finish Nickel
Cable Group RG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, 9209
Shield Termination Clamp
Compliance
RoHS Status RoHS Compliant
