302100
RoHS
RoHS compliant
RoHS compliantPackage 0603
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

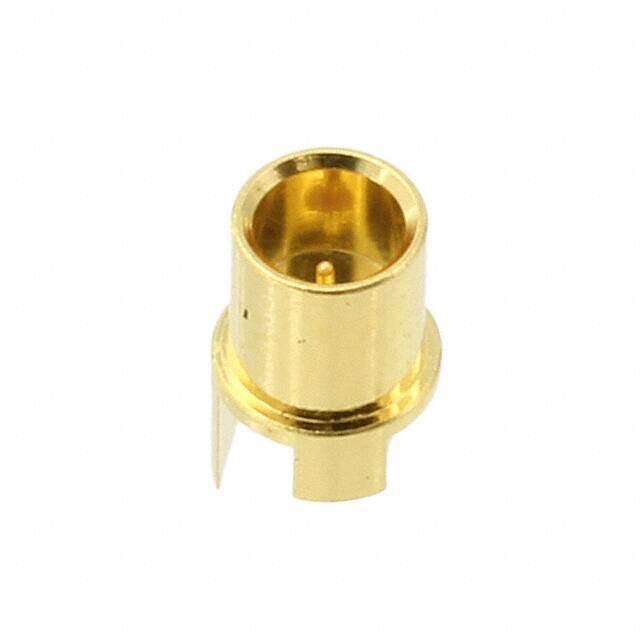

AMPHENOL RF 302100RF / Coaxial Connector, SMP Coaxial, Straight Jack, Solder, 50 ohm, Brass
PDF
/
Buying Options
Total Price: USD $9.4
Unit Price: USD $9.3984
≥1 USD $9.3984
≥10 USD $8.45768
≥100 USD $7.967168
≥500 USD $7.762832
≥1000 USD $7.558496
≥3000 USD $6.741363
Inventory: 165
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Technical
Shield Termination Solder
Body Finish Gold
Contact Termination Solder
Mating Cycles 100
Frequency (Max) 26.5GHz
Body Plating Gold
Number of Ports 1
Connector Style SMP
Impedance 50Ohm
Housing Color Gold
Frequency 26.5GHz
Orientation Straight
Fastening Type Snap-On
Voltage - Rated 500V
Gender Female
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Receptacle, Male Pin
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Smooth Bore
Published 2010
Packaging Bulk
Operating Temperature -65°C~165°C
Physical
Center Contact Material Brass
Center Contact Plating Gold
Body Material Beryllium Copper
Dielectric Material Polytetrafluoroethylene (PTFE)
Package / Case 0603
Mounting Type Board Edge, End Launch
Mount Edge, PCB
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 10 Weeks
