2FA1-NZSP-PCBB6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

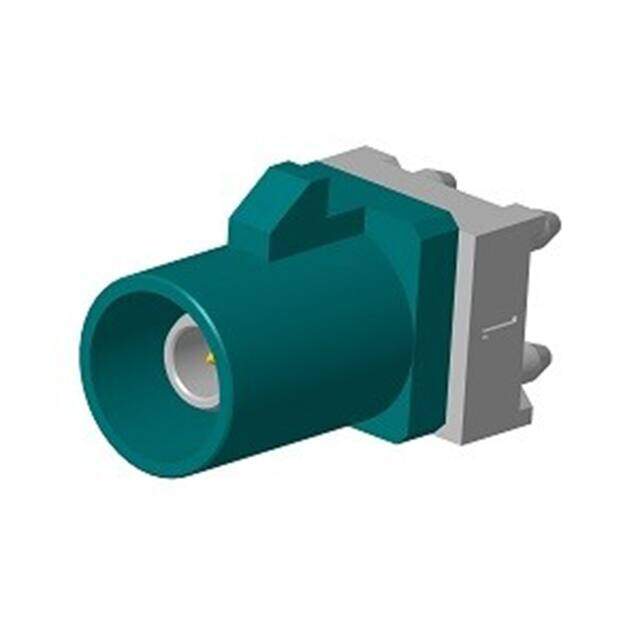

Coaxial Connector
PDF
/
Buying Options
Total Price: USD $3.43
Unit Price: USD $3.432
≥1 USD $3.432
≥10 USD $3.11256
≥100 USD $2.948
≥500 USD $2.87958
≥1000 USD $2.742414
≥3000 USD $2.399619
Inventory: 887
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Through Hole
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Zinc Die Cast
Center Contact Plating Gold
Center Contact Material Brass
Technical
Operating Temperature -65°C~165°C
Packaging Tray
Feature Code Z
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Connector Type Plug, Male Pin
Fastening Type Locking Ramp
Housing Color Blue, Water
Impedance 50Ohm
Connector Style SMB, Fakra
Number of Ports 1
Frequency (Max) 6GHz
Mating Cycles 100
Contact Termination Solder
Body Finish Tin
Shield Termination Solder
Compliance
RoHS Status RoHS Compliant
