282121-75
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

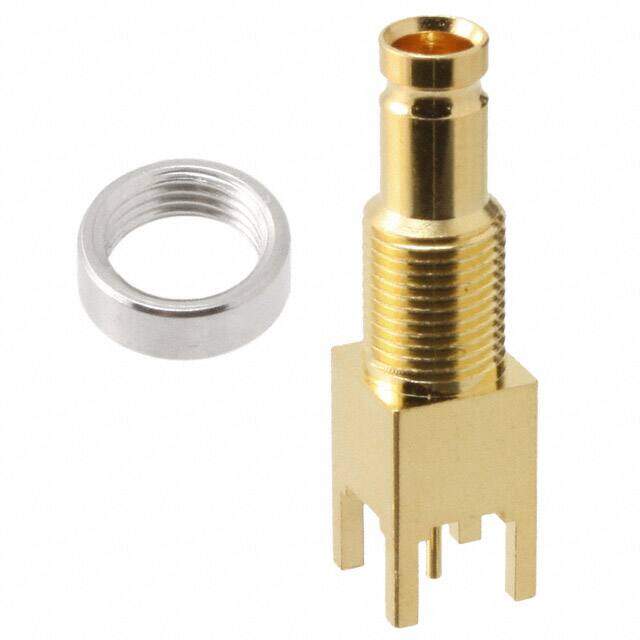

RF Connector 1.0/2.3 Straight PCB Jack Through Hole 75 Ohm Bulkhead
PDF
/
Buying Options
Total Price: USD $10.47
Unit Price: USD $10.472
≥1 USD $10.472
≥10 USD $9.42832
≥100 USD $8.882016
≥500 USD $8.654096
≥1000 USD $8.42644
≥3000 USD $7.515438
Inventory: 122
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Bulkhead, PCB, Panel, Through Hole
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Beryllium Copper
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2007
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle, Female Socket
Voltage - Rated 250V
HTS Code 8536.90.40.00
Fastening Type Push-Pull
Orientation Straight
Frequency 3GHz
Impedance 75Ohm
Connector Style 1.0/2.3
Number of Ports 1
Frequency (Max) 4GHz
Mating Cycles 500
Terminal and Terminal Block Type PCB TERMINAL
Contact Termination Solder
Includes 2 pcs - 1 Connector, 1 Nut
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
