272101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

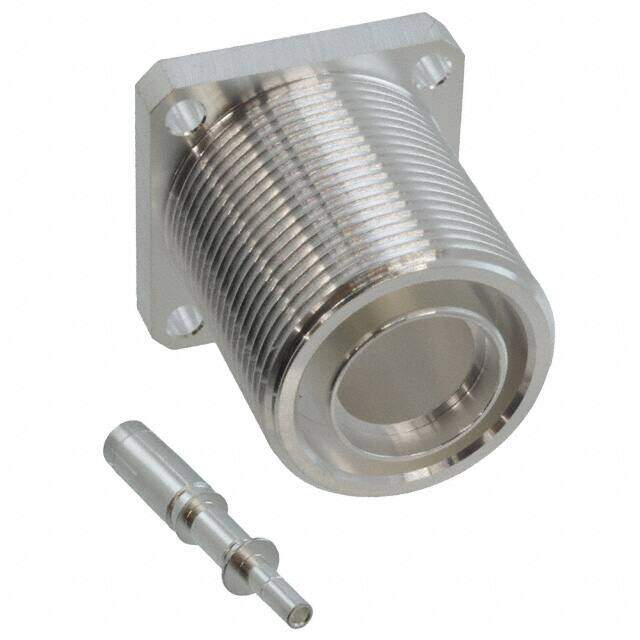

7/16 DIN Connector Jack, Female Socket 50 Ohm Panel Mount, Square Flange Compression
PDF
/
Buying Options
Total Price: USD $38.64
Unit Price: USD $38.642109
≥1 USD $38.642109
≥10 USD $36.454814
≥100 USD $34.391337
≥500 USD $32.444655
≥1000 USD $30.60817
Inventory: 8656
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper
Contact Plating Silver
Mount Flanges, Panel
Mounting Type Panel Mount
Mounting Feature Flange
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Silver
Center Contact Material Beryllium Copper
Technical
Operating Temperature -40°C~150°C
Packaging Bulk
Published 2008
Feature Field Replaceable, For Hermetically Sealed Pin
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack, Female Socket
Max Operating Temperature 150°C
Min Operating Temperature -40°C
Voltage - Rated 2.7kV
Fastening Type Threaded
Orientation Straight
Depth 32mm
Frequency 7.5GHz
Housing Color Silver
Polarity Standard
Impedance 50Ohm
Connector Style 7/16 DIN
Number of Ports 1
Body Plating Silver
Frequency (Max) 7.5GHz
Mating Cycles 500
Contact Termination Compression
Body Finish White Bronze
Cable Group RG-401 (.250 Semi Rigid)
Shield Termination Screw
Dimensions
Length 41mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
