262121
RoHS
RoHS compliant
RoHS compliantPackage 316
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

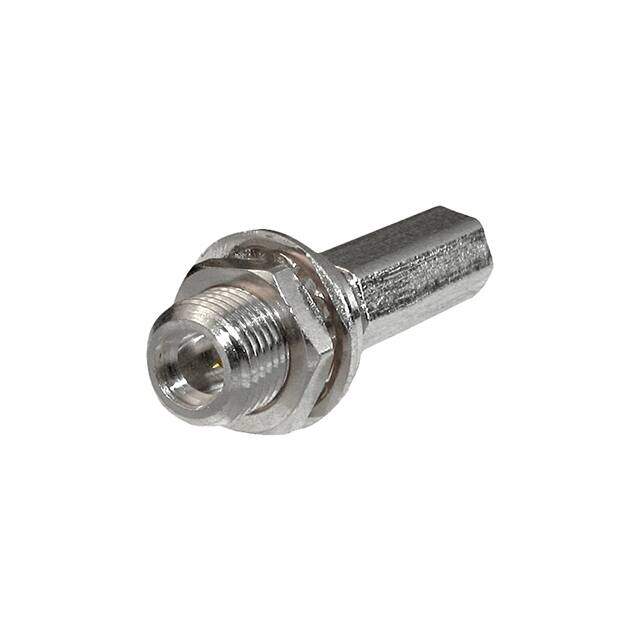

RF Connectors / Coaxial Connectors MMCX BULKHEAD JACK 174 316 GOLD
PDF
/
Buying Options
Total Price: USD $8.05
Unit Price: USD $8.052
≥1 USD $8.052
≥10 USD $7.24856
≥100 USD $6.8288
≥500 USD $6.653504
≥1000 USD $6.478472
≥3000 USD $5.77808
Inventory: 179
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Shield Termination Crimp
Cable Group RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Body Finish Nickel
Includes 5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 6GHz
Body Plating Nickel
Number of Ports 1
Connector Style MMCX
Impedance 50Ohm
Insulation Resistance 500MOhm
Housing Color Silver
Frequency 6GHz
Orientation Straight
Fastening Type Snap-On
Voltage - Rated 170V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2006
Packaging Bulk
Physical
Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Feature Bulkhead - Front Side Nut
Package / Case 316
Mounting Type Panel Mount
Mount Bulkhead, Front Side Nut, Panel
Contact Plating Gold
Contact Material Copper
Supply Chain
Factory Lead Time 9 Weeks
