262116
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

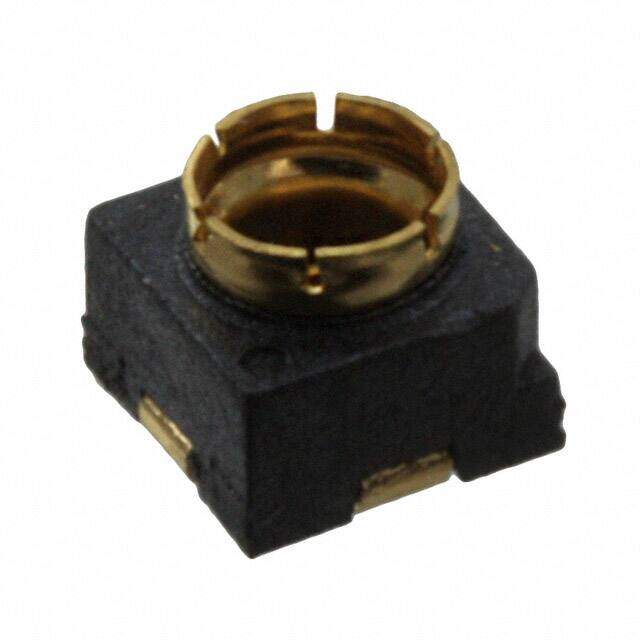

RF Connector MMCX Straight PCB Jack Surface Mount 50 Ohm
PDF
/
Buying Options
Total Price: USD $7.44
Unit Price: USD $7.436
≥1 USD $7.436
≥10 USD $6.72584
≥100 USD $6.353952
≥500 USD $6.199072
≥1000 USD $5.889136
≥3000 USD $5.269202
Inventory: 91
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Shield Termination Solder
Body Finish Gold
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 6GHz
Body Plating Gold
Number of Ports 1
Connector Style MMCX
Impedance 50Ohm
Housing Color Natural
Frequency 6GHz
Orientation Straight
Fastening Type Snap-On
Voltage - Rated 170V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Receptacle, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2007
Packaging Bulk
Physical
Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Dielectric Material Liquid Crystal Polymer (LCP)
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
Contact Material Copper
Supply Chain
Factory Lead Time 10 Weeks
