262111
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

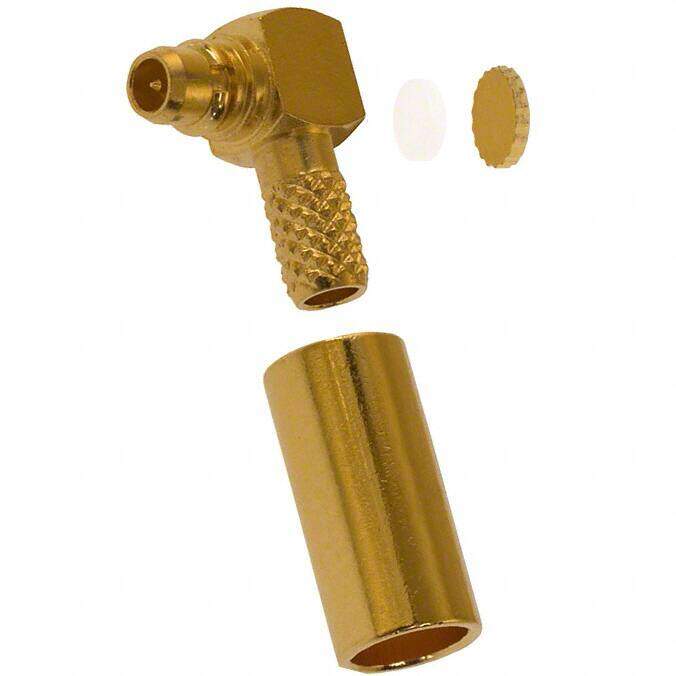

MMCX Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line), Right Angle Solder
PDF
/
Buying Options
Total Price: USD $6.56
Unit Price: USD $6.556
≥1 USD $6.556
≥10 USD $5.9312
≥100 USD $5.602784
≥500 USD $5.466208
≥1000 USD $5.192968
≥3000 USD $4.646312
Inventory: 116
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 900.012311mg
Body Material Brass
Center Contact Plating Gold
Center Contact Material Brass
Technical
Packaging Bulk
Published 2001
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug, Male Pin
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 170V
Fastening Type Snap-On
Orientation Right Angle
Frequency 6GHz
Housing Color Gold
Impedance 50Ohm
Connector Style MMCX
Number of Ports 1
Body Plating Gold
Frequency (Max) 6GHz
Mating Cycles 500
Contact Termination Solder
Includes 4 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Insulator
Body Finish Gold
Cable Group RG-179, 188, 316 Double Braid, M17/152-RD316
Shield Termination Crimp
Dimensions
Length 9mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
