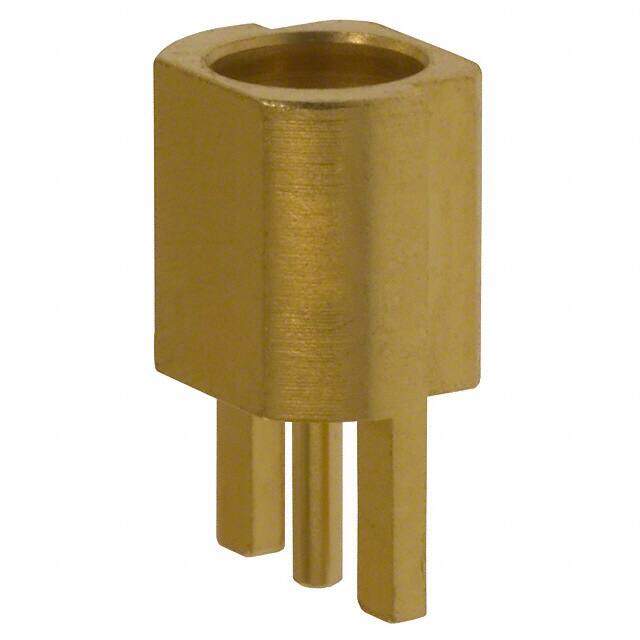

262107
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
CONN MMCX JACK STR 50OHM EDGEMNT
PDF
/
Buying Options
Total Price: USD $5.67
Unit Price: USD $5.6672
≥1 USD $5.6672
≥10 USD $5.12072
≥100 USD $4.837184
≥500 USD $4.719264
≥1000 USD $4.483248
≥3000 USD $4.011366
Inventory: 718
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper
Contact Plating Gold
Mount Edge, PCB
Mounting Type Board Edge, Cutout; Surface Mount
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 373.986909mg
Body Material Brass
Center Contact Plating Gold
Center Contact Material Beryllium Copper
Technical
Packaging Bulk
Published 2001
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Jack, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 170V
Fastening Type Snap-On
Orientation Straight
Depth 7.5mm
Frequency 6GHz
Housing Color Gold
Impedance 50Ohm
Connector Style MMCX
Number of Ports 1
Body Plating Gold
Frequency (Max) 6GHz
Mating Cycles 500
Contact Termination Solder
Body Finish Gold
Shield Termination Solder
Dimensions
Length 4.47mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
