262103
RoHS
RoHS compliant
RoHS compliantPackage 316
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

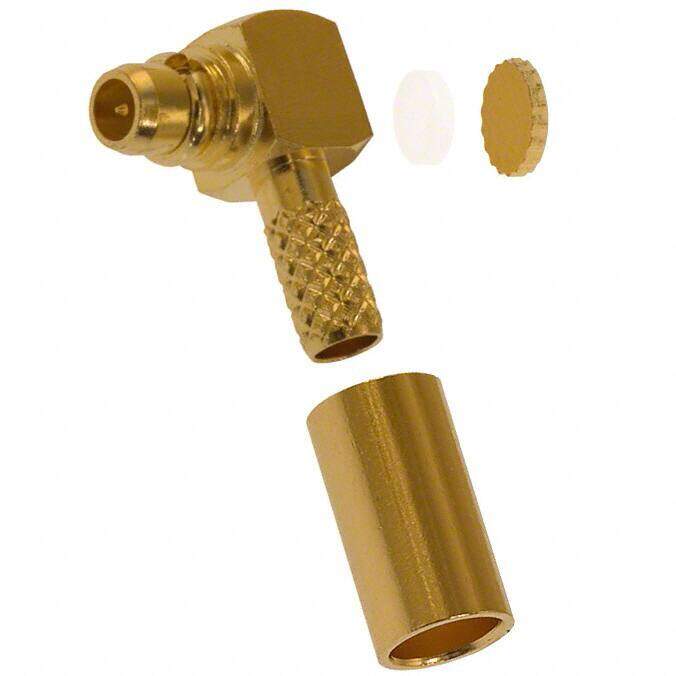

MMCX Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line), Right Angle Solder
PDF
/
Buying Options
Total Price: USD $6.64
Unit Price: USD $6.6352
≥1 USD $6.6352
≥10 USD $5.99896
≥100 USD $5.667552
≥500 USD $5.529216
≥1000 USD $5.25272
≥3000 USD $4.69979
Inventory: 844
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Length 7mm
Technical
Shield Termination Crimp
Cable Group RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Body Finish Gold
Includes 4 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Insulator
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 6GHz
Body Plating Gold
Number of Ports 1
Connector Style MMCX
Impedance 50Ohm
Insulation Resistance 500MOhm
Housing Color Gold
Frequency 6GHz
Orientation Right Angle
Fastening Type Snap-On
Voltage - Rated 170V
Gender Male
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Plug, Male Pin
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2001
Packaging Bulk
Operating Temperature -65°C~165°C
Physical
Center Contact Material Brass
Center Contact Plating Gold
Body Material Brass
Weight 620.004071mg
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Package / Case 316
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 8 Weeks
