252217
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

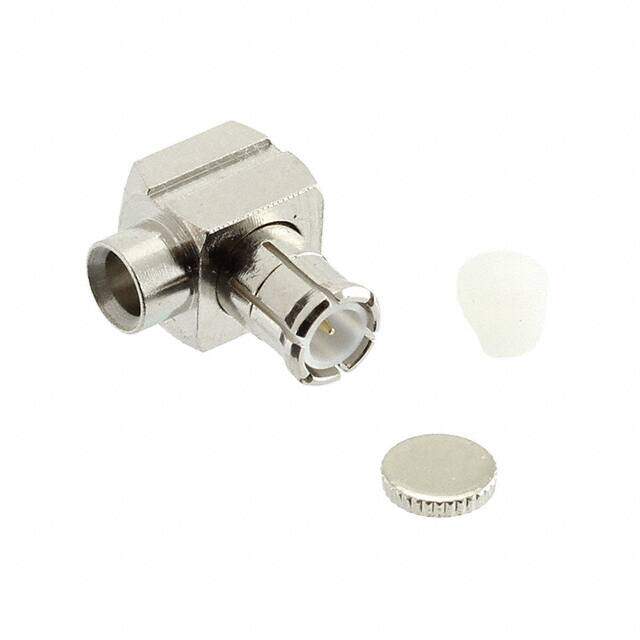

CONN MCX PLUG R/A 50 OHM SOLDER
PDF
/
Inventory: 8729
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Dielectric Material Polyoxymethylene (POM) Acetal, Polytetrafluoroethylene (PTFE)
Body Material Beryllium Copper
Center Contact Plating Gold
Center Contact Material Brass
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2014
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pin
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Voltage - Rated 225V
Fastening Type Snap-On
Housing Color Silver
Impedance 50Ohm
Connector Style MCX
Number of Ports 1
Body Plating Nickel
Frequency (Max) 6GHz
Mating Cycles 500
Contact Termination Solder
Includes 3 pcs - 1 Connector, 1 End Cap, 1 Insulator
Insertion Loss 0.1dB
Body Finish Nickel
Cable Group RG-405 (.085, .086 Semi Rigid)
Shield Termination Solder
Compliance
RoHS Status RoHS Compliant
