252173
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

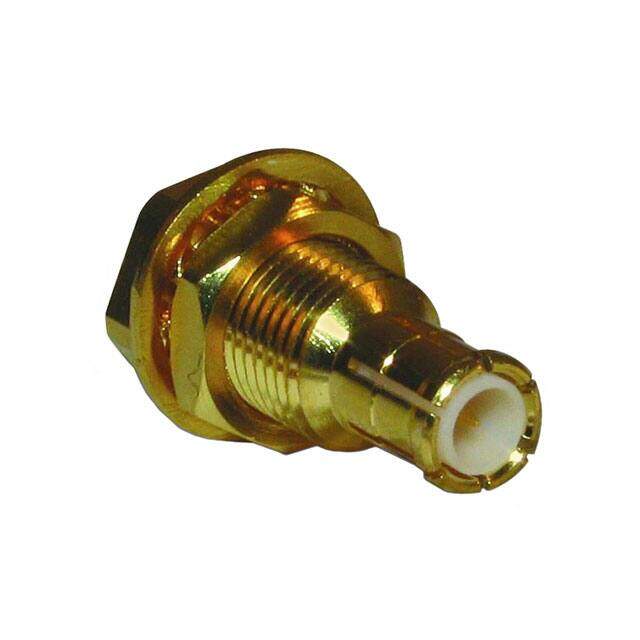

RF Connectors / Coaxial Connectors MCX BULKHEAD PLUG GOLD
PDF
/
Buying Options
Total Price: USD $17.42
Unit Price: USD $17.42087
≥1 USD $17.42087
≥200 USD $6.951806
≥500 USD $6.719422
≥1000 USD $6.603887
Inventory: 8267
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Shield Termination Solder
Body Finish Gold
Insertion Loss 0.1dB
Includes 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 6GHz
Body Plating Gold
Number of Ports 1
Connector Style MCX
Impedance 50Ohm
Housing Color Gold
Frequency 6GHz
Orientation Straight
Fastening Type Snap-On
Voltage - Rated 225V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Receptacle, Male Pin
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2003
Packaging Bulk
Physical
Center Contact Material Brass
Center Contact Plating Gold
Body Material Beryllium Copper
Weight 1.200007g
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount
Mount Bulkhead, Front Side Nut, Panel
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 9 Weeks
