252158

Amphenol RF
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Coaxial Connectors (RF)

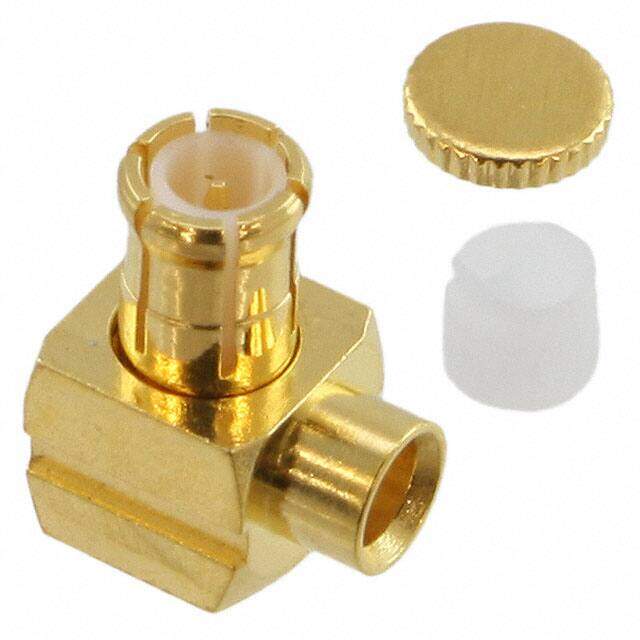

Description RF Connectors / Coaxial Connectors MCX RIGHT ANGLE PLUG .047 GOLD
PDF
/
Buying Options
Total Price: USD $11.97
Unit Price: USD $11.968
≥1 USD $11.968
≥10 USD $10.60664
≥100 USD $10.198848
≥500 USD $9.791056
≥1000 USD $9.24704
≥3000 USD $8.431166
Inventory: 191
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Technical

Cable Group 0.047 Semi Rigid
Insertion Loss 0.1dB
Includes 3 pcs - 1 Connector, 1 End Cap, 1 Insulator
Contact Termination Solder
Mating Cycles 500
Number of Ports 1
Connector Style MCX
Impedance 50Ohm
UL Flammability Code 94V-0
Frequency 6GHz
Terminal Pitch 2.54mm
Orientation Right Angle
Total Number of Contacts 58
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Fastening Type Snap-On
Voltage - Rated 225V
Number of Rows 2
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Plug, Male Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Published 2008
Packaging Bulk

Physical

Center Contact Material Brass
Center Contact Plating Gold
Body Material Beryllium Copper
Dielectric Material Polyoxymethylene (POM) Acetal, Polytetrafluoroethylene (PTFE)
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging

Supply Chain

Factory Lead Time 10 Weeks
