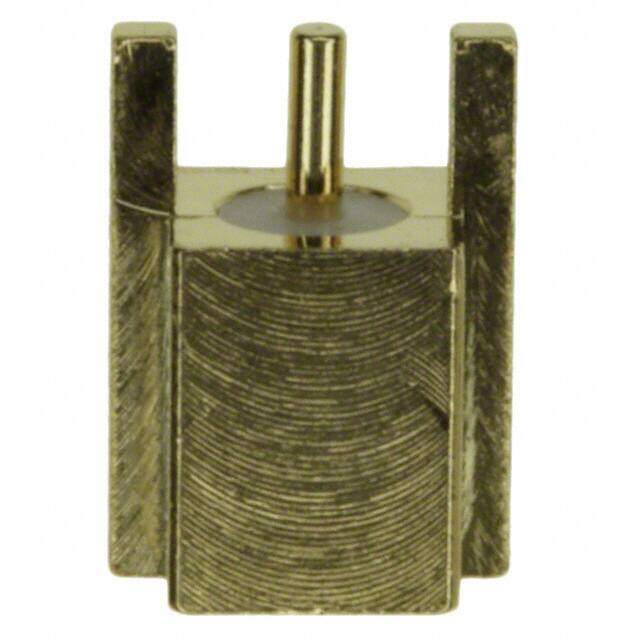

252151 image
Favorite
252151 image
Favorite

252151

Amphenol RF
RoHS
RoHS RoHS compliant
Package 062
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description MCX Connector Jack, Female Socket 50 Ohm Board Edge, Cutout Solder
PDF
/
Buying Options
Total Price: USD $6.14
Unit Price: USD $6.1424
≥1 USD $6.1424
≥10 USD $5.55632
≥100 USD $5.249376
≥500 USD $5.121248
≥1000 USD $4.865256
≥3000 USD $4.353096
Inventory: 191
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Length 6.7mm

Technical

Shield Termination Solder
Body Finish Gold
Insertion Loss 0.1dB
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 6GHz
Body Plating Gold
Number of Ports 1
Connector Style MCX
Impedance 50Ohm
Polarity Standard
Housing Color Gold
Frequency 6GHz
Depth 9.3mm
Orientation Straight
Fastening Type Snap-On
Voltage - Rated 225V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2008
Packaging Bulk

Physical

Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Package / Case 062
Mounting Type Board Edge, Cutout; Surface Mount
Mount Edge
Contact Plating Gold
Contact Material Copper

Supply Chain

Factory Lead Time 9 Weeks
