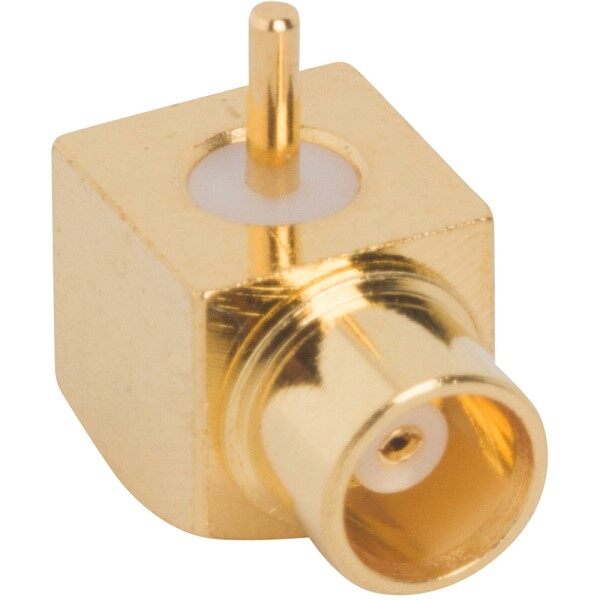

252149B-10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
Coaxial Connector
PDF
/
Inventory: 6575
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Shield Termination Solder
Body Finish Gold
Insertion Loss 0.1dB
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 6GHz
Body Plating Gold
Number of Ports 1
Connector Style MCX
Impedance 50Ohm
Housing Color Gold
Frequency 6GHz
Orientation Right Angle
Fastening Type Snap-On
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2015
Packaging Bulk
Operating Temperature -65°C~165°C
Physical
Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Type Through Hole, Right Angle
Mount Surface Mount, Through Hole
Contact Plating Gold
Contact Material Copper
Supply Chain
Factory Lead Time 8 Weeks
