252149

Amphenol RF
RoHS
RoHS RoHS compliant
Package SMD/SMT
Category Connectors, Interconnects / Coaxial Connectors (RF)

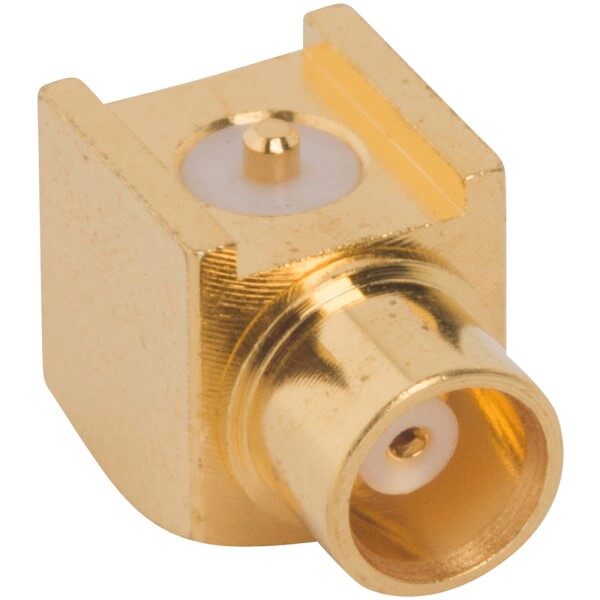

Description RF Connectors / Coaxial Connectors MCX R/A RECEPTACLE PCB 50 OHM GOLD
PDF
/
Buying Options
Total Price: USD $9.3
Unit Price: USD $9.296983
≥1 USD $9.296983
≥10 USD $8.77074
≥100 USD $8.274285
≥500 USD $7.80593
≥1000 USD $7.364083
Inventory: 4734
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Technical

Shield Termination Solder
Body Finish Gold
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 6GHz
Body Plating Gold
Number of Ports 1
Connector Style MCX
Impedance 50Ohm
Housing Color Gold
Frequency 6GHz
Orientation Right Angle
Fastening Type Snap-On
Voltage - Rated 335V
Gender Male
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Published 2001
Packaging Bulk
Operating Temperature -65°C~165°C

Physical

Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Package / Case SMD/SMT
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Plating Gold
Contact Material Copper

Supply Chain

Factory Lead Time 10 Weeks
