252145
RoHS
RoHS compliant
RoHS compliantPackage 316
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
MCX Connector Jack, Female Socket 50 Ohm Panel Mount, Bulkhead - Front Side Nut Solder
PDF
/
Buying Options
Total Price: USD $15.88
Unit Price: USD $15.883313
≥1 USD $15.883313
≥10 USD $14.984266
≥100 USD $14.136097
≥500 USD $13.335933
≥1000 USD $12.581074
Inventory: 9517
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Length 15.46mm
Technical
Shield Termination Crimp
VSWR 1.3
Cable Group RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Insertion Loss 0.1dB

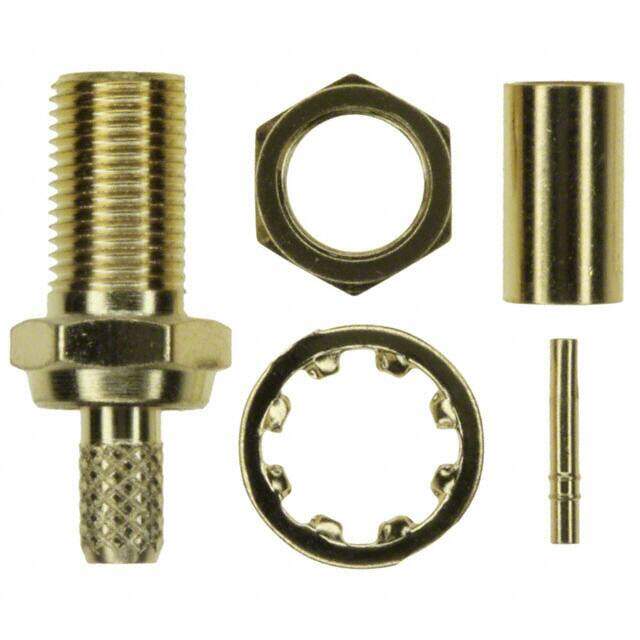

Includes 5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut
Contact Termination Solder
Mating Cycles 500
Number of Ports 1
Connector Style MCX
Impedance 50Ohm
Frequency 6GHz
Orientation Straight
Option GENERAL PURPOSE
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Fastening Type Snap-On
Voltage - Rated 225V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Published 2007
Packaging Bulk
Physical
Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Feature Bulkhead - Front Side Nut
Package / Case 316
Mounting Type Panel Mount
Mount Bulkhead, Cable, Front Side Nut, Panel
Contact Material Copper
Supply Chain
Factory Lead Time 8 Weeks
