252139

Amphenol RF
RoHS
RoHS RoHS compliant
Package 100
Category Connectors, Interconnects / Coaxial Connectors (RF)

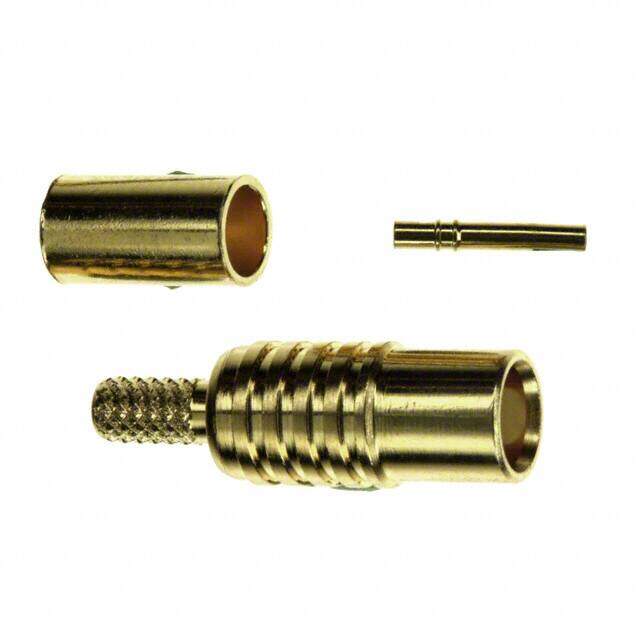

Description MCX Connector Jack, Female Socket 50 Ohm Free Hanging (In-Line) Solder
PDF
/
Buying Options
Total Price: USD $12.88
Unit Price: USD $12.884661
≥1 USD $12.884661
≥10 USD $12.155344
≥100 USD $11.467301
≥500 USD $10.81821
≥1000 USD $10.205855
Inventory: 8040
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Length 15.46mm

Technical

Shield Termination Crimp
Cable Group RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Body Finish Gold
Insertion Loss 0.1dB
Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 6GHz
Body Plating Gold
Number of Ports 1
Connector Style MCX
Impedance 50Ohm
Housing Color Gold
Frequency 6GHz
Orientation Straight
Fastening Type Snap-On
Voltage - Rated 225V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Jack, Female Socket
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2007
Packaging Bulk

Physical

Center Contact Material Beryllium Copper
Center Contact Plating Gold
Body Material Brass
Weight 1.280009g
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Package / Case 100
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Copper

Supply Chain

Factory Lead Time 9 Weeks
