252138
RoHS
RoHS compliant
RoHS compliantPackage 316
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description
MCX Connector Jack, Female Socket 50 Ohm Free Hanging (In-Line) Solder
PDF
/
Inventory: 931
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case 316
Insulation Material Polytetrafluoroethylene
Dielectric Material Polytetrafluoroethylene (PTFE)
Weight 1.844987g
Body Material Brass
Center Contact Plating Gold
Center Contact Material Beryllium Copper
Technical
Packaging Bulk
Published 2007
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Jack, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Voltage - Rated 225V
Fastening Type Snap-On
Orientation Straight
Frequency 6GHz
Housing Color Silver
Impedance 50Ohm
Connector Style MCX
Number of Ports 1
Body Plating Nickel
Frequency (Max) 6GHz
Mating Cycles 500
Contact Termination Solder

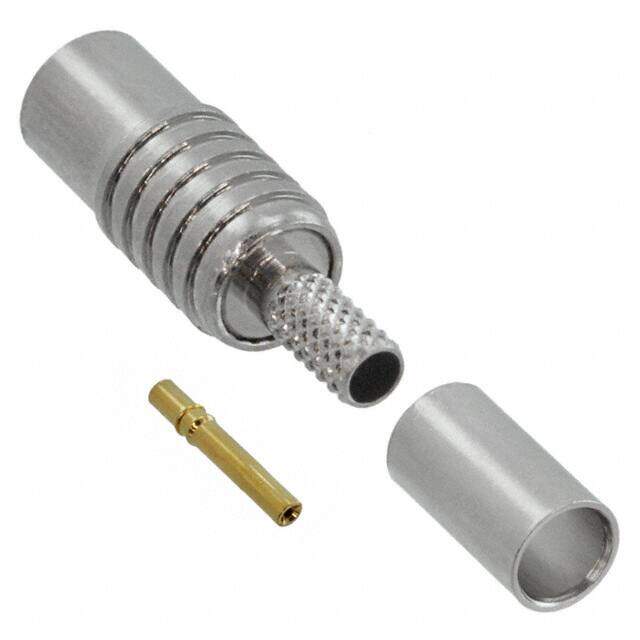

Includes 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Insertion Loss 0.1dB
Body Finish Nickel
Cable Group RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Shield Termination Crimp
Dimensions
Length 15.46mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
